Custom Colors and Surface Finishes for ACM Panel

Anodized Look Aluminum Composite Panels for Architecture, Signage, and Transport

These aluminum composite panels replicate the satin-metal character of anodizing while offering the process reliability of coil-coated finishes. They provide metallic depth, color consistency, and long-term stability for façades, interiors, signage, and transport—without the batch variability often seen with electrolytic anodizing.

Key Advantages

• Metallic aesthetics and uniformity The surface delivers brushed and satin effects with tight batch control. Tuned metallic pigments and controlled gloss help maintain uniformity on large elevations and brand programs—ideal where an anodised look façade is required.




• Weather and wear resistance PVDF/FEVE coil coatings resist UV fading, chalking, and abrasion. The finish maintains a clean metallic tone in coastal, high-UV, and high-traffic settings with straightforward maintenance.




• Lightweight stiffness and flatness A rigid ACP build combines low weight with excellent flatness for precise visual alignment. Efficient fabrication and installation can reduce substructure loads.




• Fire performance and lifecycle value Options with mineral-filled cores (A2 or B1) support safety targets. Materials are designed with recyclability in mind to support green-building goals.

Collections and Surface Options

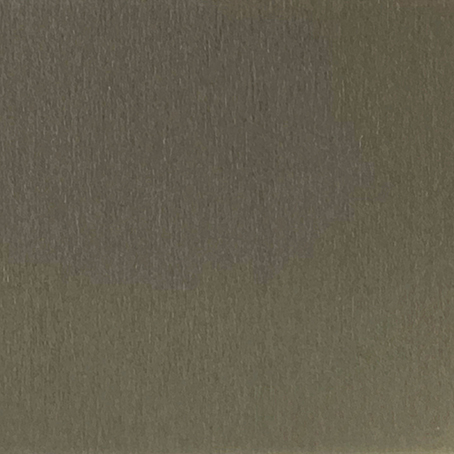

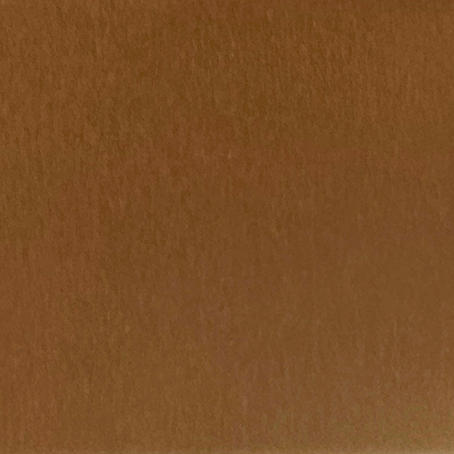

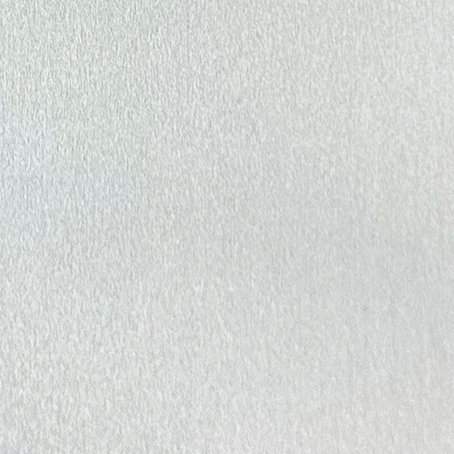

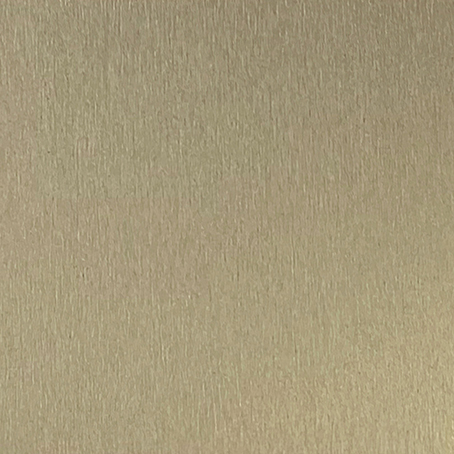

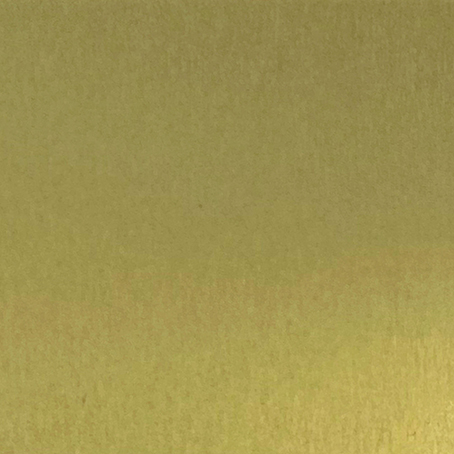

• Classic metallics: clear, champagne, bronze, black with a refined satin sheen and controlled reflectance.




• Specialty effects: brushed and hairline for texture; soft-matte for low glare; high-gloss for statement areas.




• Gloss control: lower gloss for expansive façades, medium for signage readability, higher for highlights—calibrated for consistent results.

Grades and Typical Specs

Building grade

• 3, 4, or 6 mm panels




• 0.30–0.50 mm aluminum skins




• FR mineral cores (A2/B1)




• Widths up to 1550 mm




• PVDF/FEVE topcoats




• Protective film

Signage grade

• 3–4 mm panels




• 0.21–0.30 mm skins




• CNC-friendly protective film




• Consistent metallic match




• High peel strength

Digital printing grade

• Calibrated surface tension for UV/latex inks




• 3–4 mm panels




• Low-gloss options to control glare




• Removable protective film

Transport grade

• 3–6 mm panels




• 0.40–0.50 mm skins




• High peel strength




• Optional corrosion-resistant primers




• Widths up to 1550 mm

Applications and Design Notes

• Rainscreen and curtain wall: Use as trays or cassettes on ventilated façades to achieve clean joint lines. Coordinate gloss and shade for sun exposure, and maintain drainage and ventilation continuity. Observe directionality for brushed or hairline surfaces.




• Interior walls and public areas: Provide a premium, low-glare metallic tone for lobbies, corridors, and cleanrooms. Surfaces are easy to sanitize and keep presentable.




• Retail signage and wayfinding: Satin-metal finishes support brand quality on fascias, menu boards, and directional signs with reliable color matching across sizes.




• Vehicles and marine: Lightweight panels support fleet branding and interior modules with durable, easy-to-clean finishes.

Installation and Care

• Measuring and layout: Accurate surveys and shop drawings ensure module alignment and correct grain orientation where texture is specified.




• Thermal movement: Allow for aluminum expansion with uniform joint gaps and slotted fixings, including clearances around openings and perimeters.




• Fixing methods: Use tested rainscreen subframes with riveted or concealed systems. Observe edge distances and appropriate fastener torque to protect the surface.




• Maintenance: Clean with pH‑neutral detergents and soft cloths. Avoid abrasives. Establish a regular schedule for coastal or urban sites.

Performance and Compliance

• Weathering and corrosion: The system is validated through accelerated UV and salt-spray testing for coastal and high-UV regions.




• Adhesion and peel strength: High peel strength maintains composite integrity during routing, folding, and service.




• Fire ratings: Mineral cores supporting A2/B1 options help meet façade and public-area requirements. Verify local codes during specification.

Quick Selection Guide

• Façades/interiors: Building grade FR with satin or soft-matte metallics.




• Signage: Signage grade with medium gloss.




• Digital printing: Printing grade with calibrated surface.




• Transport: Transport grade with corrosion-resistant systems.

FAQ

Q: How does this differ from electrolytic anodizing?

A: The coil-coated metallic system delivers an anodized-effect appearance with improved batch control and color uniformity across lots. It reduces shade variation and supports consistent gloss.

Q: Can the panels be routed, folded, and curved?

A: Yes. Use recommended tools and radii for each thickness, protect the visible surface during fabrication, and follow panel-maker guidelines.

Q: Will color and gloss match across large elevations?

A: Keep batch codes consistent and order attic stock. Our process targets tight tolerances; mockups are recommended to confirm appearance in project lighting.

Q: What should I specify for coastal projects?

A: Select PVDF or FEVE finishes, consider corrosion-resistant primers for transport or exposed edges, and plan a routine wash schedule.

Contact Anodized Look supplier

Request samples, mockups, or a project quote to confirm shade, gloss, and fabrication details.
