Custom Colors and Surface Finishes for ACM Panel

Wooden Stone Composite Panels for Architecture, Signage, and Transport

Our Wooden Stone composite panels reproduce authentic woodgrain and stone textures on lightweight aluminum composite panels (ACP). The range combines the warmth of timber-look surfaces with the solidity of stone-effect finishes, while delivering flatness, color consistency, and weather resistance for long service life. It suits exterior cladding, interiors, signage, digital printing, and transport projects.

Category Definition and Differentiators

The Wooden Stone category unifies wood- and stone-look finishes across building, signage, print, and transport grades to keep a coordinated palette throughout a project. Textures can be matte, brushed, or micro‑embossed for tactile realism.

Unlike natural materials, these panels offer uniform appearance across lots and sizes.

Key Features

• High flatness for precise joints and clean reveals




• UV‑resistant coatings and corrosion resistance for exterior durability




• Fire‑rated core options (A2/B1) available in selected Wooden Stone ACP




• Excellent machinability for routing, folding, CNC cutting, and bending within recommended radii




• Direct supply supports shorter lead times and wider finish choices




• Technical support on measurement, thermal allowance, subframes, and fixing methods

Applications

Building Facades and Interiors

Use PVDF/Kynar-coated cladding for stable color and efficient installation. Indoors, panels create refined walls, columns, and ceilings with concealed fixings for hospitality, corporate, education, and healthcare spaces. Wooden Stone cladding achieves a natural look without the weight or variability of real materials.

Signage and Retail Displays

ACP sheets offer dimensional stability and CNC‑ready flatness for letters, lightboxes, and shopfronts. Campaigns benefit from consistent color and textures that resist warping.

Digital Printing and Visual Graphics

A receptive clear topcoat supports UV, solvent, and latex inks. Print directly over texture to create layered, photo‑real effects for experiential environments, exhibition booths, and POP.

Transport: Vehicles and Marine

Lightweight composite performance meets upscale finishes. Panels for cabins and fit‑outs are engineered for vibration resistance, salt spray exposure, and daily wear to help reduce weight and maintenance.

Product Grades and Typical Specs

• Building Grade ACP: 3/4/6 mm panels; aluminum skin up to 0.5 mm; 1220–1570 mm width; up to 6000 mm length; PVDF/Kynar coating; B1/A2 options; finish warranties up to 15–20 years.




• Signage Grade Sheets: 2/3/4 mm; 0.21–0.3 mm skins; 1220/1500 mm width; 2440–4000 mm length; durable paint or protective clear; lightweight cores for easy fabrication.




• Digital Printing Grade Panels: 3–4 mm; 1220/1500 mm width; 2440–4000 mm length; UV/solvent/latex‑receptive clear; matte or low‑gloss surface.




• Transport Grade Composite: 3–5 mm; 0.4–0.5 mm skins; abrasion‑resistant clears; temperature range approx. −50°C to +80°C; salt spray resistance per applicable ISO/ASTM methods.

Finishes and Surface Options

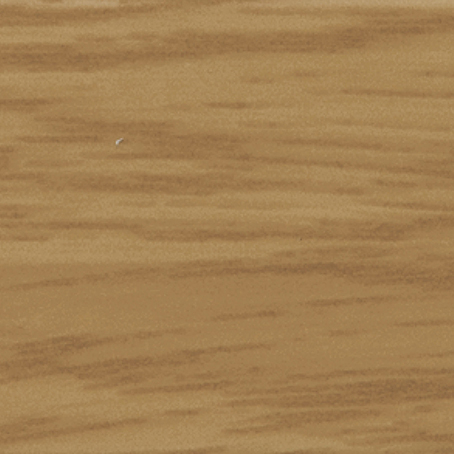

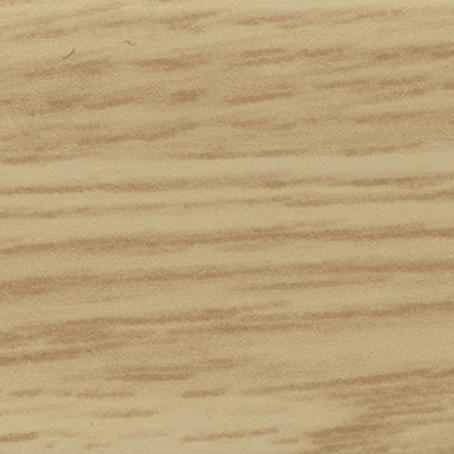

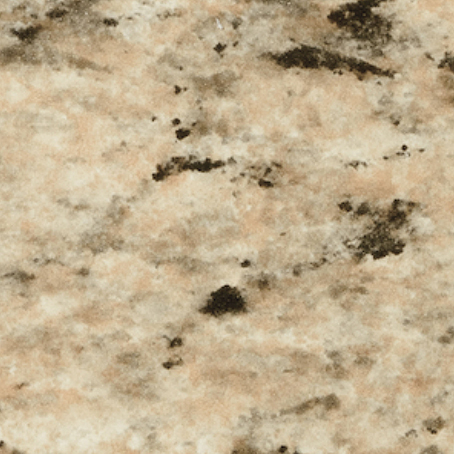

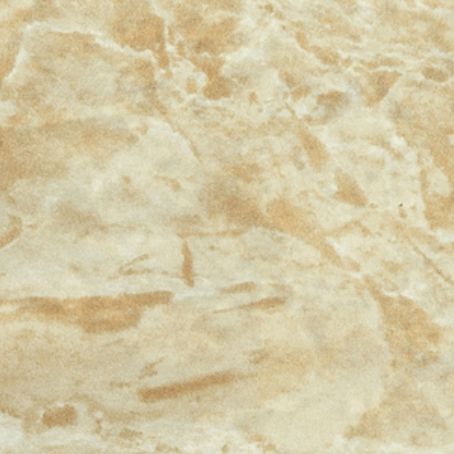

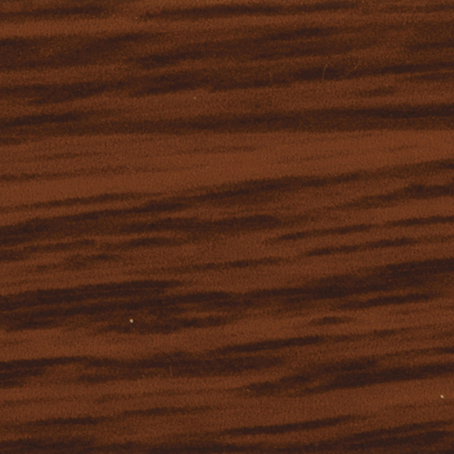

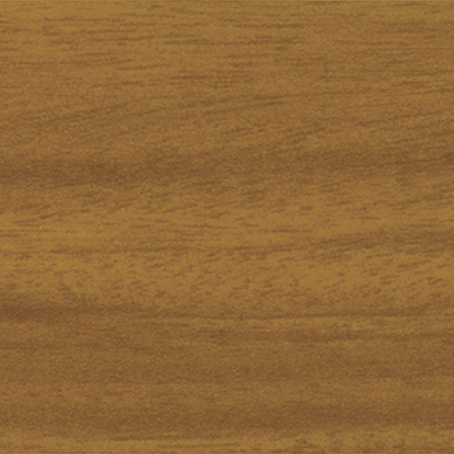

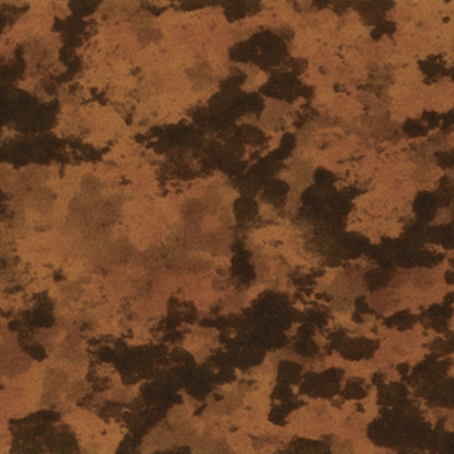

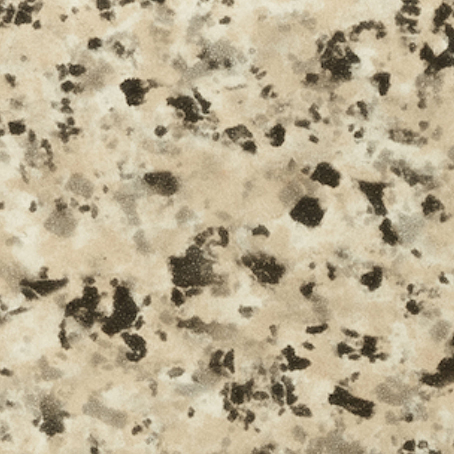

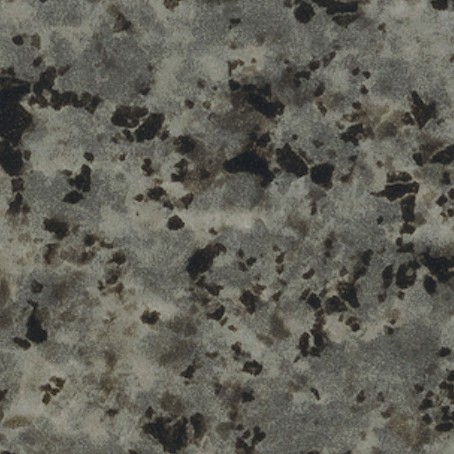

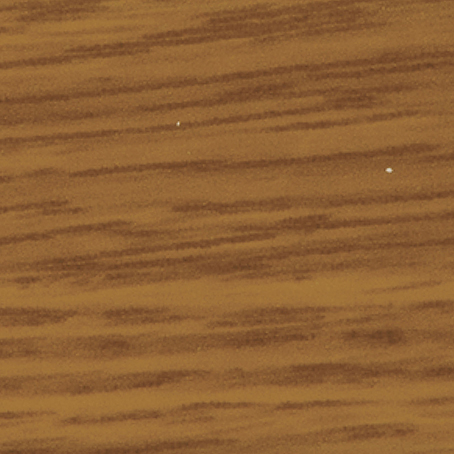

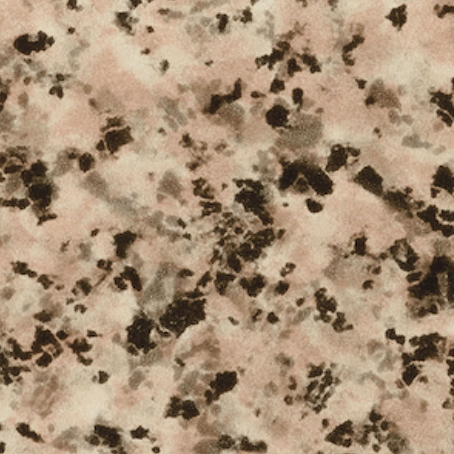

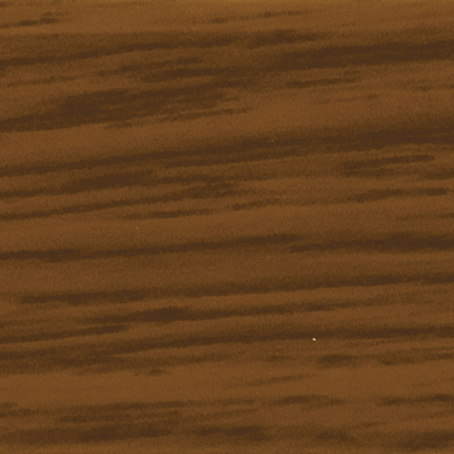

Choose light oak, walnut, teak, grey ash, travertine, marble, slate, and concrete looks in matte, satin, brushed, or micro‑embossed textures. Custom color matching and gloss control are available.

Anti‑scratch and anti‑fingerprint options help surfaces stay clean.

Performance and Installation Notes

Typical weight is about 3.8–7.6 kg/m² with peel strength ≥7 N/mm. Thermal expansion is similar to aluminum (~23×10⁻⁶/K); allow sliding fixings and planned joints. UV‑stable coatings support long‑term color. A2 Wooden Stone ACP and B1 cores are available for projects that require defined fire performance; low‑VOC finishes are offered on selected items.

Installation guidance includes joint planning, correct routing and folding depths, appropriate rivet/bolt spacing, compatible sealants, and subframe selection. Technical support is available for shop drawings and on‑site queries.

Ordering, Customization, and Lead Times

Select in‑stock SKUs for rapid dispatch, or request custom tones, gloss levels, and textures with defined MOQs. Samples, color cards, and inspection reports can be provided. Contact the Wooden Stone composite panel manufacturer team to discuss color matching or request a quote.
