Digital Printing Grade ACP

Name: Digital Printing Grade ACP
Rating: 5.0 (46 reviews)

Product Description

Technical Data

Performance index

Item	units	Digital Printing Grade ACP
		Alu. Thickness: <0.2mm
	mm	2	3	4	6
Mechanical Property
Bending strength	MPa	≥40
Penetration resistance	MPa	≥2
Shear strength	MPa	≥8
Tensile strength of Alu	MPa	≥125
Alu Proof stress(0.2%)	MPa	≥115
The elongation of Alu	%	≥1
Liner thermal expansion	mm/m	≤2.4(100°C) Aluminum product
	°C-1	≤0.0004 Composite panel
Thermal deformation temperature	°C	≥85
180° peel strength	N/mm	≥3
Heat resistance water	/	No change

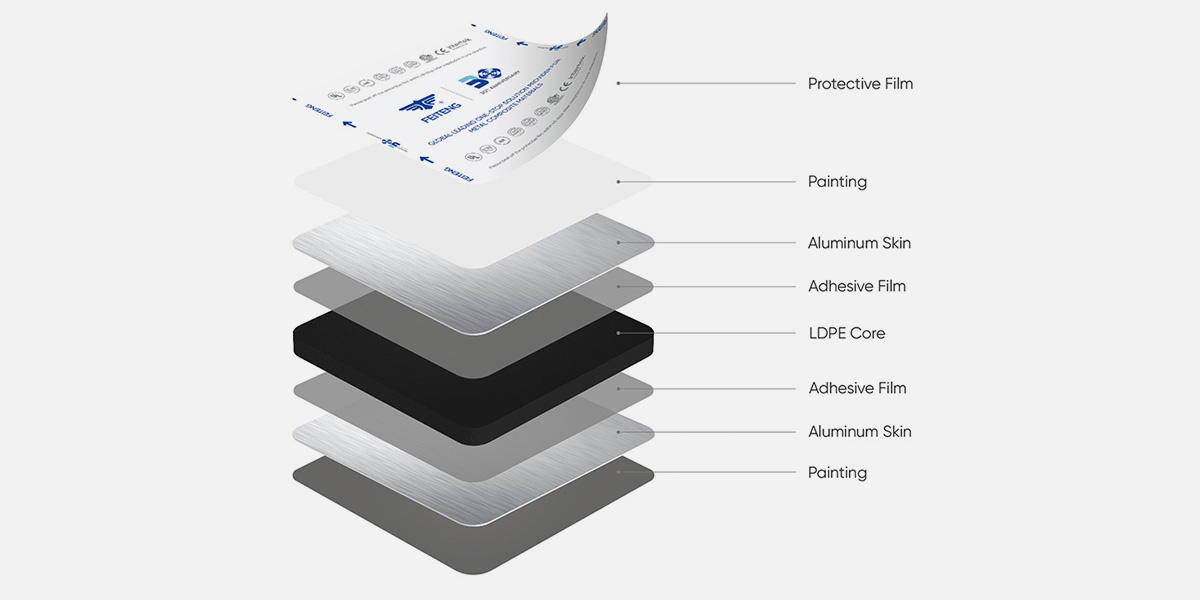

Composite Panel Core
Core density		1.15~1.20
Coating
Coating thickness	μm	Single avg≥16 min≥14; Double avg≥25 min≥23; Third avg≥32 min≥30
glossiness	%	≥25
Coating hardness	/	≥HB
Acoustic Performance
Sound absorption factor	α	0.05
Sound insulation factor	dB	23	25	26	27
Thermal Performance
Heat transition coefficient	W/mK	5.98	5.65	5.54	5.34

Product Range

Thickness (mm)	2	3	4
Formats (B×L)
1000x2440mm	●	●	●
1000x3050mm	●	●	●
1000x4050mm	●	●	●
1250x2440mm	●	●	●
1250x3050mm	●	●	●
1250x4050mm	●	●	●
1500x2440mm	●	●	●
1500x3050mm	●	●	●
1500x4050mm	●	●	●
1575x2440mm	●	●	●
1575x3050mm	●	●	●
1575x4050mm	●	●	●
1750x2440mm	●	●	●
1750x3050mm	●	●	●
1750x4050mm	●	●	●
2000x2440mm	●	●	●
2000x3050mm	●	●	●
2000x4050mm	●	●	●
* The above information is the standard size when shipping from the factory, which can be cut into the specifications you need according to customer needs
