Product Description
 |  |  |
 |  |  |
Metal Laminate Panel Physical Property
| Test Item | Standards | Test Results |
| Bending strength | ≥50MPa | 78MPa |
| Flexural modulus of elasticity | none | 2.0×104MPa |
| Penetrating resistance | none | 7.0KN |
| Shear strength | none | 22MPa |
| 180° peeling strength | Average≥5.0N/mm | 6.8N/mm |
| Temperature resistance | no change | no change |
| Thermal expansion coefficient | none | 2.1×10-5/°C |
| Deformation temperature | ≥85°C | 101°C |
Product Range

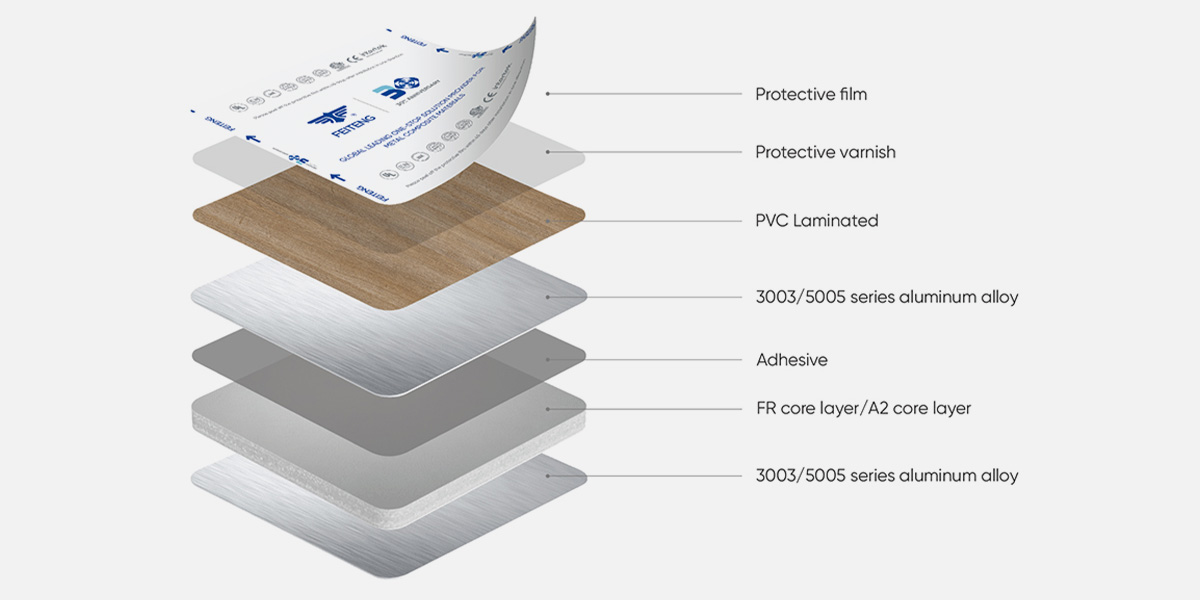

PVC laminated
| Width (mm) | 1000 | 1250 | 1500 | 1550 | 1750 | 2000 |
| Length (mm) | 2000~8000 | 2000~8000 | 2000~8000 | 2000~8000 | 2000~8000 | 2000~8000 |
| VANMSI | ● | ● | ● | ● | - | - |
