Views: 0 Author: Site Editor Publish Time: 2026-08-27 Origin: Site
Global shifts in building safety regulations place intense scrutiny on facade materials. Specifying fire-rated cladding is a major liability and safety focal point for architects, engineers, and developers. Specifying the wrong grade of Aluminum Composite Panel (ACP) leads to failed building inspections, uninsurable assets, costly remediation mandates, or catastrophic structural failures during a fire event. We see projects stalled constantly because material choices fail to align with updated local fire codes. Navigating the technical and regulatory distinctions between A2 vs B1 ACP is essential for balancing project requirements with strict fire safety compliance. This guide breaks down the material science, performance metrics, and compliance frameworks required to make an evidence-based specification decision. You will learn exactly how these panels behave under thermal stress and where each belongs on a modern job site.
The Fire-Rating Spectrum: B1 ACP is the minimum threshold for flame-retardant cladding (classified as "hard combustible"), whereas A2 ACP represents the highest level of safety (classified as "non-combustible"). Both are vastly superior to non-compliant B2 (combustible) panels.
Core Composition Strategy: B1 treats combustible materials with chemicals to make them difficult to ignite, while A2 directly replaces combustible elements with a predominantly inorganic mineral-based core (typically >90%).
Regulatory Mandates: A2 ACP is increasingly the legal minimum and only compliant option for high-rise buildings (often above 18 meters) and high-occupancy public spaces, whereas B1 is restricted to low-rise or specific commercial applications.
Cost vs. Risk: While A2 panels carry a higher upfront material cost, they mitigate severe long-term risks regarding insurance premiums, liability, and future-proofing against tightening building codes.
Table of Contents

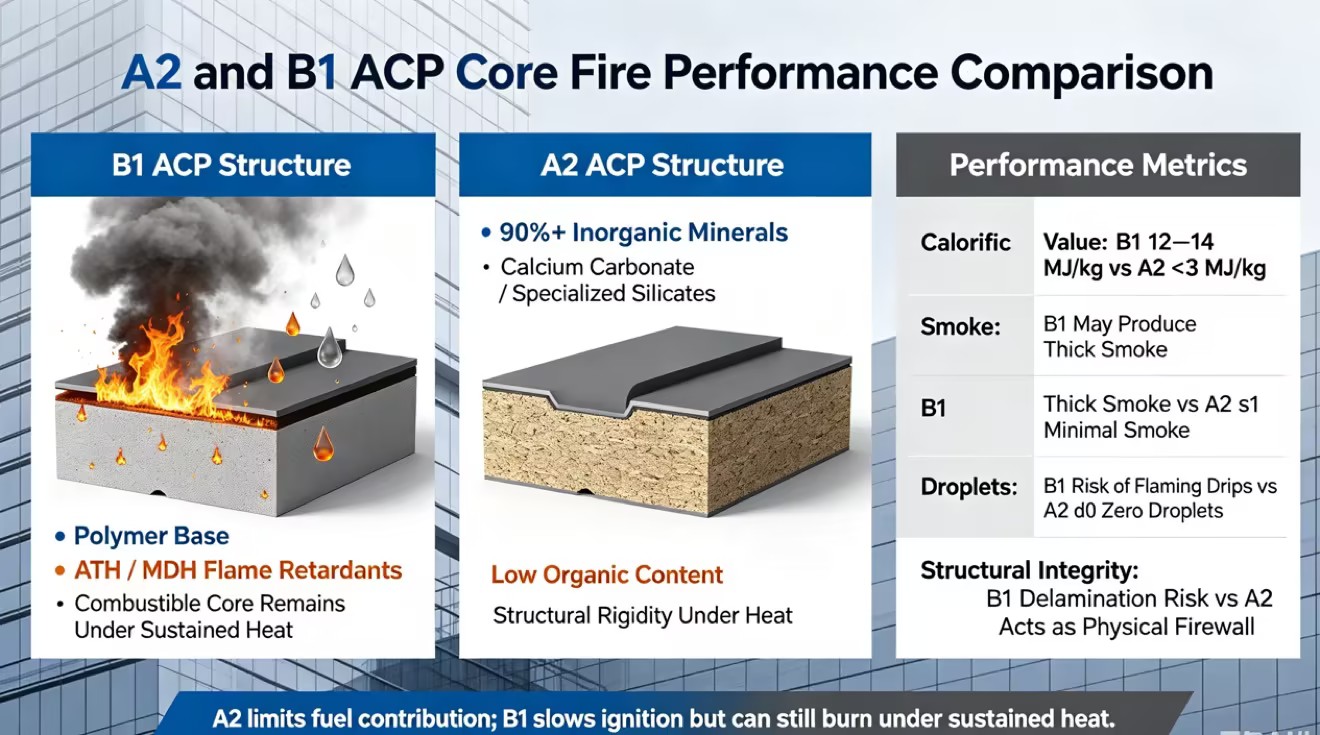

B1 ACP is a flame-retardant panel tested under standards such as DIN 4102-1 or EN 13501-1. Its core typically combines polyethylene (PE) with flame-retardant minerals such as aluminum trihydroxide (ATH) or magnesium hydroxide (MDH). When exposed to high temperatures, these additives absorb heat and release water vapor, helping delay ignition and slow flame spread. However, because the core still contains combustible polymer, B1 panels can burn under prolonged fire exposure.
A2 ACP offers a high level of fire performance and typically achieves an A2-s1, d0 rating under EN 13501-1. Its core contains a high proportion of inorganic minerals and much less combustible polymer than lower fire-rated grades. This mineral-rich composition reduces heat release, smoke, and fire spread while helping the panel remain more stable under high temperatures.
Gross Calorific Value (PCS) measures the total energy released when a material burns completely. This metric strictly defines the difference between A2 and B1 panels. Testing laboratories use a bomb calorimeter to determine this value. They place a sample in a high-pressure oxygen environment, ignite it, and measure the temperature rise. A2 panels feature an extremely low organic content, resulting in a PCS typically below 3 MJ/kg. This negligible heat release means the panel simply cannot act as a fuel source. It starves the fire of the energy needed to climb the facade.
B1 panels possess a higher PCS, often ranging between 12 and 14 MJ/kg, due to their polymer base. They contain combustible elements that release significant heat once the fire overwhelms the retardant chemicals. This heat release contributes to the overall thermal load of the fire. As the panel burns, it generates energy that pre-heats adjacent panels. This pre-heating accelerates fire propagation. Understanding this thermal contribution is mandatory when evaluating facade safety for large-scale commercial projects.
European fire classifications consider both smoke production ('s') and flaming droplets ('d'). B1 panels contain polymer materials that may produce more smoke and flaming droplets under high temperatures, increasing fire and evacuation risks.
A2 panels generally provide better performance in these areas. An A2-s1, d0 rating indicates low smoke production (s1) and no flaming droplets (d0) under the specified test conditions. The high mineral content of the core also helps reduce its contribution to fire spread.
High temperatures can cause the aluminum skins of composite panels to separate from the core, a process known as delamination. B1 panels contain more polymer material, which can soften under prolonged heat and expose the wall cavity and insulation.
A2 panels use a high-mineral core that generally remains more stable under high temperatures. This can help limit fire spread within the wall assembly and maintain the panel structure for longer under fire conditions.
Building height strictly dictates material choice across global jurisdictions. Firefighting equipment has physical limitations. Aerial ladder platforms and ground-based water streams typically cannot effectively reach above 18 meters (roughly six stories). Therefore, building codes enforce stringent rules based on this height threshold. Above 18 meters, the building envelope must defend itself against fire propagation. Many regions now enforce an even stricter 11-meter rule for high-risk occupancies.
B1 is legally permissible only in specific, low-risk scenarios. You can specify B1 for single-story retail units, corporate signage, and low-risk industrial parks. In these applications, occupants can evacuate quickly directly to the ground level, and firefighters can easily access the entire facade. Conversely, A2 is strictly mandated as the only compliant option for complex structures. You must use A2 for high-rises, hospitals, schools, and multi-residential complexes. High-traffic public spaces like airports and transit hubs also legally require A2 panels. Specifying B1 in these scenarios violates building codes and invites severe legal penalties.
Commercial property insurers view cladding materials through a strict risk-assessment lens. Combustible facades represent an unacceptable risk profile for underwriters. Insurers utilize advanced fire modeling to determine premiums and coverage limits. Specifying A2 ACP directly lowers insurance premiums. It demonstrates a commitment to maximum life safety and property protection. This proactive approach significantly reduces developer and architect liability in the event of a fire.
Choosing B1 for borderline projects carries massive financial risks. The regulatory environment is tightening globally. Assets built or retrofitted with B1 panels risk becoming stranded. A stranded asset cannot be insured at reasonable rates. It cannot be refinanced by major lenders. Buyers will demand costly facade remediation before closing a sale. Specifying A2 vs B1 ACP correctly prevents this catastrophic devaluation of commercial property.
Performance Metric | B1 ACP (Hard Combustible) | A2 ACP (Non-Combustible) |
|---|---|---|
Core Composition | Polymer base with chemical flame retardants | >90% inorganic mineral compounds |
Ignition Resistance | Resists initial ignition, burns under sustained heat | Does not ignite under normal fire conditions |
Smoke & Droplets | May produce thick smoke and flaming polymer drips | Minimal smoke (s1), zero flaming droplets (d0) |
Calorific Value (PCS) | 12 - 14 MJ/kg; contributes thermal energy | < 3 MJ/kg; starves the fire of fuel |
Code Compliance | Restricted to low-rise and low-risk commercial | Mandated for high-rise, hospitals, and schools |
CNC Routing Speed | Standard feed rates, minimal tool wear | Reduced feed rates, requires specialized tooling |
Upfront procurement costs differ significantly between the two grades. A2 commands a premium. This difference stems directly from the complex manufacturing process. Extruding a core composed of 90% rigid minerals requires specialized, heavy-duty machinery. The mineral compounds cause high tool wear and require slower production line speeds. B1 panels utilize a softer polymer base, allowing for faster, more efficient extrusion.
You must frame this cost difference accurately. Do not view the A2 premium in isolation. Evaluate it as a percentage of the total facade budget. Furthermore, evaluate it against the total project budget. The material cost increase for A2 is often a fraction of a percent of the total build cost. This minor upfront premium buys absolute regulatory compliance and long-term asset security, eliminating the risk of future forced remediation.
Physical handling and fabrication require different approaches on the job site. A2 panels are generally heavier due to their dense mineral core, often weighing between 7.5 to 8 kg/m2 compared to the 6 to 6.5 kg/m2 of B1 panels. This weight difference impacts structural load calculations. Engineers must design heavier sub-frames and specify stronger mechanical fixings. Installation crews face increased physical fatigue when handling A2 panels, which can slightly extend installation timelines.
Routing, folding, and curving present distinct constraints. The rigid A2 core demands specialized CNC tooling. Fabricators must use specific diamond-tipped or solid carbide router bits designed for abrasive minerals. Routing speeds must decrease by 30 to 40 percent to prevent tool burnout and core fracturing. B1 panels offer greater flexibility. Their polymer core routes easily and allows for tighter curving radii. You must account for these fabrication timelines and tooling requirements when scheduling facade delivery.
Non-combustible facades directly impact the resale value of a commercial building. Institutional investors conduct rigorous technical due diligence before acquiring assets. Fire safety compliance is a primary pass/fail metric during these inspections. Buildings clad in A2 panels pass these audits seamlessly. They represent a secure, future-proofed investment that aligns with the strictest global standards.
Buildings clad in B1 face intense scrutiny during the compliance lifecycle. As local fire codes inevitably tighten, existing B1 facades may require expensive remediation to maintain occupancy permits. Buyers discount the property value to account for this future liability. Specifying A2 during the initial build guarantees the long-term valuation and liquidity of the real estate asset.
The facade industry faces a severe risk of supply chain fraud. Unscrupulous suppliers often market counterfeit panels. They label standard combustible panels generically as "fireproof" without providing specific A2 or B1 grading. Relying on marketing brochures leads to catastrophic compliance failures. You must implement a rigorous verification framework to protect your project.
Demand independent, third-party testing certificates from recognized bodies like Intertek, SGS, or UL. These reports must tie directly to the specific product batch delivered to your site. Do not accept generic, out-of-date certificates. Inspect the panels upon delivery. Legitimate manufacturers print continuous audit trails and grading information directly onto the rear aluminum skin or the protective film. Verify these markings against the batch documentation before allowing any panel to be mounted on the sub-frame.
An A2 panel does not guarantee a fire-safe wall assembly on its own. The panel acts merely as the outer skin. Fire safety requires a holistic, system-level approach. The cavity behind the cladding presents a severe risk. Flames entering this cavity create a chimney effect, accelerating fire vertically regardless of the panel grade.
You must engineer the entire wall assembly for fire resistance. Install proper intumescent cavity barriers at every floor slab and fire compartment line. These barriers expand under heat to seal the cavity and block vertical drafts. Specify strictly non-combustible mineral wool insulation behind the panels. Ensure the aluminum framing systems comply with local fire deflection standards. A flawless A2 panel fails if the underlying system burns.
A2 ACP is the definitive standard for high-rise and high-occupancy structures. It offers uncompromising safety and regulatory compliance by utilizing a core that simply does not burn. B1 ACP remains a viable option strictly for low-rise, low-risk applications where local codes explicitly permit hard-combustible materials. Base your final decision on local building codes, building height, occupancy type, and insurer requirements before factoring in material cost.
Consult with a certified fire engineer to map local height restrictions and occupancy regulations for your specific project.
Request comprehensive EN 13501-1 or ASTM E84 test reports directly tied to the specific production batch from shortlisted manufacturers.
Conduct a full wall-assembly fire test review to ensure cavity barriers and insulation align perfectly with the chosen cladding.
Audit your structural load calculations to safely accommodate the increased weight of mineral-core A2 panels.
A: These grades represent the fire-rating spectrum. B2 is standard combustible ACP and is non-compliant for modern facades. B1 is "hard combustible," meaning it is treated with chemicals to slow down fire but can still burn. A2 is "non-combustible," offering the highest level of safety with a mineral core that does not ignite.
A: Generally no. Most modern building codes restrict B1 to low-rise structures. This restriction typically applies to buildings under 11 to 18 meters, depending on the jurisdiction. Because B1 maintains a combustible core, it poses too great a risk for high-rise evacuation and firefighting.
A: They are standardized fire reaction classifications. A2 means "non-combustible" and indicates the panel contains minimal organic material. B1 means "hard combustible" or flame-retardant. It indicates the panel resists initial ignition but will eventually burn under sustained, extreme fire exposure.
A: Request independent, third-party laboratory test reports like EN 13501-1 or ASTM E84. Ensure these reports tie directly to your specific product batch. Additionally, look for continuous manufacturer markings and grading stamps on the panel's protective film or rear aluminum skin.
A: Yes, A2 panels are typically heavier. Their core consists of dense inorganic minerals, whereas B1 uses a lighter, polymer-based core. You must account for this increased weight in your structural load planning and sub-frame design.
A: While B1 panels are treated to retard flames, the polymer components in the core can still produce smoke and potentially toxic gases. This occurs when the panel is subjected to high, sustained temperatures. A2 panels, with their mineral cores, produce virtually no smoke.
