Facade fire safety dominates modern architectural specification following severe cladding failures worldwide. Specifiers and procurement teams face a complex landscape when deciphering fire test reports. The primary risk lies in confusing a panel-only material rating with whole-system assembly compliance. This oversight leads to failed inspections, structural hazards, and massive liability. The EN 13501-1 standard provides the definitive European framework for evaluating the reaction-to-fire of Aluminium Composite Panels (ACP). This guide cuts through the noise. We will break down how to specify the correct core grade, mitigate liability, and ensure regulatory compliance. You will learn to read classification reports accurately and apply them to real-world wall assemblies. By mastering the EN 13501-1 ACP framework, your team can confidently select materials that meet strict building codes and protect building occupants.

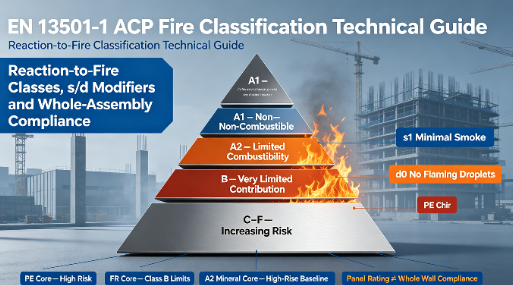

Classification Hierarchy: EN 13501-1 categorizes ACP based on combustibility (Classes A1 to F), with A2 (non-combustible/limited combustibility) being the strict baseline for high-rise applications.
Sub-Classifications Matter: A panel's rating is incomplete without its smoke production (s1, s2, s3) and flaming droplet (d0, d1, d2) modifiers, which directly impact evacuation safety.
Core Material Dictates Performance: ACP panels are not inherently fire-safe or unsafe; the internal core—whether Polyethylene (PE), Fire Retardant/Resistant (FR), or mineral-filled (A2)—fundamentally determines the panel's baseline risk, heat release rate, and flame spread.
System vs. Component: An EN 13501-1 ACP certification applies to the panel itself; true building compliance requires evaluating the panel in conjunction with the entire wall assembly (insulation, sub-framing, and cavity barriers).
Table of Contents
Standardized testing frameworks objectively measure how a material contributes to fire growth before flashover. Basic pass/fail metrics do not work for complex facade engineering. The European classification system uses multiple testing apparatuses to evaluate different fire reaction parameters. The Single Burning Item (SBI) test, defined under EN 13823, evaluates flame spread and heat release by simulating a fire in the corner of a room. The bomb calorimeter test, under EN ISO 1716, measures the absolute heat of combustion. Together, these tests provide a realistic picture of how a panel behaves when exposed to a thermal event on a building exterior.

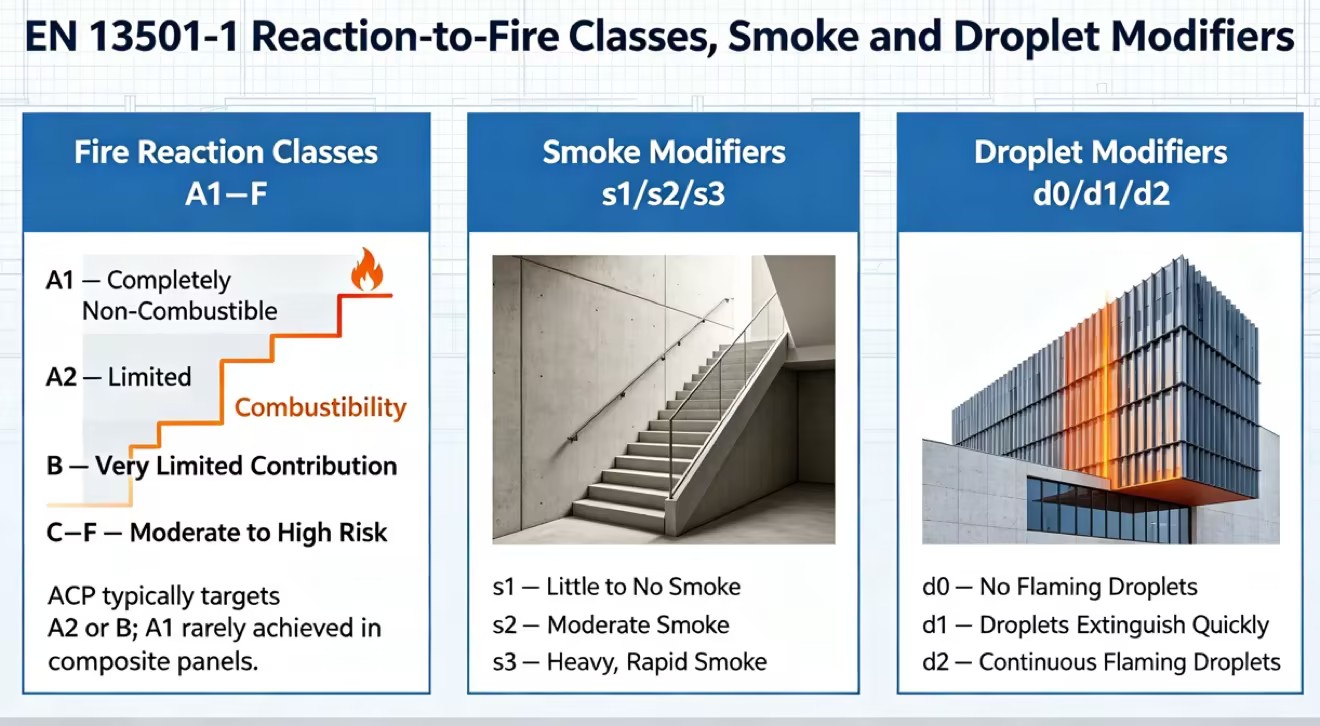

The system grades materials from A1 down to F. Class A1 means completely non-combustible. Composite panels almost never achieve this rating. The manufacturing process requires adhesive films to bond the aluminum skins to the core. Exterior coatings like PVDF or FEVE also add combustible mass to the finished product. Solid aluminum sheets hit A1, but composite structures do not.
Class A2 denotes limited combustibility. This is the highest realistic standard for composite panels. Materials here show exceptionally low heat release rates. They do not sustain flaming. The Fire Growth Rate (FIGRA) and Total Heat Release (THR) values remain well below the dangerous thresholds that lead to flashover. Class B materials are combustible but offer a very limited contribution to fire. We define this in the field as "difficult to ignite." Standard fire-retardant cores usually land here. They resist initial ignition but burn under sustained thermal exposure.
Classes C through F represent high-risk categories. These materials ignite easily and spread flames rapidly. Building codes strictly prohibit their use on modern commercial exterior envelopes. Using these materials on a facade guarantees a failed inspection and immediate remediation orders.
Classification | Definition | Typical ACP Core Match | Facade Suitability |
|---|---|---|---|
A1 | Completely non-combustible | Solid Metal (No Core) | Universal compliance |
A2 | Limited combustibility | Mineral-filled (>90%) | High-rise & high-risk compliant |
B | Combustible, very limited contribution | Fire Retardant (FR) | Low-rise restricted use |
C - F | Combustible, moderate to high contribution | Polyethylene (PE) | Strictly prohibited for facades |
Smoke opacity severely hinders evacuation. The standard uses s1, s2, and s3 modifiers to grade total smoke production and the rate of smoke increase. The 's1' modifier means little to no smoke generation. This is a hard requirement for enclosed structures or high-occupancy buildings. It ensures escaping occupants and entering fire crews maintain visibility in stairwells and corridors. The 's2' rating indicates moderate smoke. The 's3' rating denotes heavy, rapid smoke generation that blinds escape routes and clogs HVAC systems, leading to severe inhalation hazards.
Flaming particles melting and falling from a facade spread fire to lower floors. They also pose a severe burn risk to evacuees exiting the building and firefighters setting up staging areas at the perimeter. The standard grades this hazard using d0, d1, and d2 modifiers. Specifying 'd0' means the material produces absolutely no flaming droplets within the test duration. This is non-negotiable for multi-story facades. A 'd1' rating allows some droplets that extinguish quickly. A 'd2' rating indicates continuous flaming droplets that ignite secondary fires on awnings, vehicles, or lower roof decks.
Three primary core technologies dominate the market. Each maps directly to expected fire classifications. The internal core defines the baseline fire risk, heat release rate, and structural integrity of the panel. Understanding the chemical makeup of these cores explains their laboratory performance and field behavior.
Standard Polyethylene (PE) cores represent the highest risk in the cladding industry. They consist of 100% thermoplastic material sandwiched between aluminum skins. This composition yields an extremely high calorific value. When exposed to fire, the aluminum skins delaminate rapidly. The exposed plastic core melts, ignites, and acts as a concentrated fuel source. It produces a rapid heat release rate that accelerates fire spread up the building exterior, often bypassing internal fire stops.
Standard PE panels generally achieve Class E or F ratings. They generate heavy smoke and continuous flaming droplets. Building codes effectively ban them for external cladding in regulated jurisdictions. You only see them used for temporary signage, small-scale display boards, or interior applications where fire codes do not mandate non-combustible materials.
Fire Retardant (FR) cores offer improved performance over PE but carry distinct limitations. Their composition typically features 70% mineral hydroxide mixed with a 30% polymer binder. The mineral component is usually Aluminum Trihydroxide (ATH) or Magnesium Hydroxide (MDH). These panels usually achieve a B-s1, d0 rating. The mineral content makes them difficult to ignite under standard test conditions.
However, the 30% polymer binder remains combustible. Under sustained heat exposure, FR panels eventually contribute to the fire load. They suit low-rise buildings, specific interior fit-outs, or architectural canopies. Strict regulatory limitations govern their use on multi-story facades. Many jurisdictions cap their application at building heights of 11 meters or 18 meters. Using FR panels above these heights violates code and exposes the project to massive liability.
Mineral-filled A2 cores set the definitive standard for high-rise compliance. They require an exceptionally high mineral content, usually exceeding 90%, bound together by a minimal amount of polymer. This exact formulation achieves an A2-s1, d0 rating. The performance relies on an endothermic chemical reaction rather than just a lack of fuel.
When heated to approximately 220°C, the ATH mineral core undergoes a phase change. It actively releases water vapor trapped within its chemical structure. This moisture cools the surrounding area, dilutes combustible gases, and actively suppresses flame spread. This mechanism minimizes heat release rates and prevents the core from sustaining a flame. This allows the panel to safely pass the rigorous non-combustibility criteria required for modern skyscrapers.
Field teams must verify core types upon delivery to prevent material substitution. Follow these steps to conduct a basic site inspection:
Check the panel edge profile. A2 cores typically appear lighter in color (white or pale gray) and feel chalky or brittle compared to the smooth, dark plastic of a PE core.
Review the manufacturer's printed batch code on the rear skin of the panel.
Cross-reference the batch code with the delivery manifest and the approved technical submittal.
Weigh a sample offcut. A2 panels are significantly heavier than PE or FR panels due to the dense mineral content.
Perform a field burn test on a small scrap piece using a blowtorch. A2 cores will not sustain a flame once the torch is removed, whereas PE cores will melt and burn continuously.
Proper specification requires matching the panel class to specific project parameters. You cannot apply a one-size-fits-all approach to facade engineering. Building height, occupancy type, and long-term risk management strategies dictate the required performance level. Failing to align the material with the building's risk profile leads to severe compliance failures.
Building height drastically alters evacuation dynamics and firefighting tactics. Strict A2 requirements apply to buildings over 11 meters or 18 meters, depending on local code adaptations. Above these heights, external fire spread outpaces the reach of standard firefighting equipment, such as aerial ladder platforms. The facade must inherently resist fire propagation to allow occupants sufficient time to descend through internal stairwells.
High-risk occupancies demand even greater scrutiny. Hospitals, schools, aged care facilities, and prisons feature extended evacuation times. Occupants may be non-ambulatory or require significant assistance. These structures require non-combustible or limited combustibility materials on all exterior surfaces to guarantee maximum evacuation windows, regardless of the total building height.
Building Type / Occupancy | Height Threshold | Minimum Required Core | Evacuation Strategy |
|---|---|---|---|
Commercial Office | Over 18m | A2 (Mineral-Filled) | Phased vertical evacuation |
Residential Tower | Over 11m | A2 (Mineral-Filled) | Stay-put or phased evacuation |
Hospital / Aged Care | Any Height | A2 (Mineral-Filled) | Progressive horizontal evacuation |
Retail / Low-Rise | Under 11m | FR (Fire Retardant) | Simultaneous immediate evacuation |
Material choices directly impact builder's risk and long-term property insurance premiums. The global insurance market has drastically tightened underwriting standards for commercial buildings with composite cladding. Specifying an A2 core over an FR core often reduces these premium costs significantly. Insurers recognize the reduced fire load and lower risk of total asset loss. Many underwriters now refuse to insure buildings with Class B or lower cladding without exorbitant premiums.
Specifying the highest grade material provides long-term liability protection for architects, specifiers, and developers. Building codes continuously evolve, generally becoming more stringent. Exceeding minimum code requirements today shields project stakeholders from future litigation, costly remediation mandates, or uninsurable assets if regulations tighten further.
A2 panels carry a higher initial material cost compared to FR or PE alternatives. The manufacturing process for high-mineral cores requires specialized extrusion equipment and slower production line speeds. Procurement teams must contrast this initial premium with the hidden, long-term costs of lower-grade panels.
Combustible cores introduce the severe risk of future facade remediation mandates. Stripping and replacing non-compliant cladding costs exponentially more than specifying the correct material during initial construction. Lower-grade panels also restrict application flexibility, increase long-term insurance burdens, and negatively impact the overall valuation of the commercial asset. A building with A2 cladding commands a higher resale value due to its verified compliance status.
Assuming a panel rating guarantees a safe wall remains the most common and dangerous point of failure in facade specification. A compliant panel does not automatically equal a compliant building. The classification system evaluates the material, not the entire architectural envelope. You must evaluate how the panel interacts with the framing, insulation, and air gaps.
The standard tests the material in isolation or under very specific, controlled mounting conditions. This laboratory environment does not account for the complex geometry of a real building. Specifically, it fails to replicate the chimney effect present in a ventilated rainscreen facade. Fire behaves entirely differently when drawn up a continuous, vertical air cavity behind the cladding panels. The draft created by the cavity accelerates flame spread, pushing the fire higher even if the outer panel has limited combustibility.
The actual fire performance of the facade depends heavily on the broader assembly components. Aluminum sub-framing materials, combustible exterior insulation, weather barriers, and sealants all contribute to the total fire load. If the insulation behind an A2 panel ignites, the resulting cavity fire can bypass the cladding entirely and breach internal compartments through windows or structural joints.
The presence, placement, and correct installation of intumescent cavity barriers drastically alter flame spread. These barriers expand under heat to seal the ventilation gap, choking off oxygen to the fire. We strongly recommend secondary large-scale system testing to validate the chosen panel. Standards like BS 8414 or NFPA 285 evaluate the EN 13501-1 ACP within the specific, full-scale wall build-up, providing a true measure of assembly safety.
Assembly Component | Fire Risk Contribution | Recommended Specification |
|---|---|---|
Exterior Insulation | High (if combustible PIR/PUR is used) | Non-combustible Mineral Wool (Class A1) |
Cavity Barriers | Critical for stopping chimney effect | Intumescent strips at floor slabs and party walls |
Weather Membrane | Moderate (adds continuous fuel layer) | Class B or higher fire-rated breather membrane |
Sub-framing | Low (but can melt and cause panel collapse) | Extruded aluminum or galvanized steel |
Specifying the correct material is only the first step. You must ensure the physical product delivered to the construction site matches the specified standard. Supply chain traceability mitigates the severe risk of unauthorized product substitution. Contractors sometimes swap A2 panels for cheaper FR panels to increase profit margins, assuming the visual similarity will hide the change.
Buyers must rigorously verify the documentation provided by suppliers. Always check the date of the test report. Fire standards update periodically, and decade-old certificates may no longer reflect current testing methodologies. Verify the accreditation of the testing laboratory issuing the certificate to ensure they hold the proper international credentials, such as UKAS or ISO 17025 accreditation.
Generic test reports serve as a major red flag. Legitimate, reliable reports specify the exact panel thickness, core formulation ratio, and coating type tested. The fire load changes if a manufacturer tests a 4mm panel with thick aluminum skins but supplies a 3mm panel with thin skins. Reject any documentation that lacks these specific manufacturing details. The report must explicitly state the product name matching your purchase order.
Require manufacturer batch testing documentation upon delivery. Reputable manufacturers track core formulations per production run. Implement strict on-site verification protocols. Site managers should perform random core density checks or visual inspections of the core color and texture. These proactive steps prevent unauthorized product substitution between the initial specification phase and the final installation on the building facade. Maintain a clear chain of custody file containing delivery dockets, batch numbers, and corresponding fire test reports for the final building handover manual.
Take the following immediate actions to secure your facade specification and ensure full regulatory compliance:
Audit your current architectural specifications to remove outdated material references and explicitly mandate A2-s1, d0 classifications for all high-rise applications.
Request updated, product-specific test reports from your panel manufacturers that detail the exact thickness, core formulation, and coating type you intend to purchase.
Consult with a qualified fire engineer to review the whole-wall assembly design, ensuring cavity barriers and insulation align with the panel's performance data.
Implement strict on-site verification protocols to weigh and visually inspect delivered cladding materials against the approved technical submittals before installation begins.
A: The difference lies in the core mineral content. A2 panels contain over 90% non-combustible minerals, achieving limited combustibility with very low heat release. FR panels typically contain 70% minerals and 30% combustible polymer. FR achieves a Class B rating, meaning it is difficult to ignite but will still contribute to the fire load under sustained heat.
A: This specific rating breaks down into three parts. Class B indicates the material has a very limited contribution to fire growth. The 's1' modifier means it produces minimal to no smoke, maintaining visibility. The 'd0' modifier confirms the material produces zero flaming droplets, preventing downward fire spread.
A: No, they are entirely different testing frameworks. The European standard evaluates multiple reaction-to-fire parameters, including total heat release, smoke production, and flaming droplets. ASTM E84 is a North American standard that focuses primarily on surface burning characteristics, specifically measuring the flame spread index and smoke developed index in a tunnel test.
A: Standard 100% Polyethylene cores cannot achieve A2 or B ratings. They contain pure thermoplastic fuel and typically fall into Class E or F. This classification makes them entirely non-compliant for architectural cladding and multi-story facade applications in regulated jurisdictions.
A: No, the rating only applies to the specific panel tested in isolation. Whole-system performance requires separate, large-scale assembly testing, such as BS 8414 or NFPA 285. These larger tests account for the interaction between the panel, combustible insulation, framing, and cavity barriers.
