Specifying the wrong aluminum composite panel dimensions carries severe architectural and financial risks. Catastrophic failures like oil-canning, massive panel deflection under dynamic wind loads, and sudden delamination often stem from a single misunderstanding. Buyers frequently confuse total panel thickness with actual ACP aluminum skin thickness. This confusion leads to under-engineered building facades that fail under stress or over-budget interior projects carrying unnecessary weight. You face a constant battle between strict budget constraints and uncompromising structural integrity. Solving this requires a rigorous evaluation framework. You need to align the metal layer dimensions with specific environmental stressors, application requirements, core bonding capabilities, and long-term warranty conditions. Understanding this dynamic ensures your cladding performs exactly as intended without structural compromise.
Baseline Specifications: Exterior structural cladding requires a minimum ACP aluminum skin thickness of 0.50mm (with a ≥4mm total panel thickness) to ensure structural integrity and wind load resistance.
Performance Correlation: Skin thickness directly dictates panel rigidity, impact resistance, and the ability to maintain form over time without warping.
The Weight Advantage: Specifying the correct ACP aluminum skin thickness achieves the rigidity and impact resistance of solid aluminum but at a significantly reduced dead load, lowering overall structural framing costs.
The Bonding Caveat: Thicker aluminum skins exert higher thermal expansion forces; without superior core bonding strength, thick skins are highly susceptible to delamination under environmental stress.
Cost-Efficiency: Specifying 0.12mm to 0.30mm skins for low-stress, interior, or signage applications prevents unnecessary weight and budget bloat without sacrificing aesthetic quality.
Table of Contents
Aluminum composite panels utilize a highly engineered sandwich structure. The manufacturing process involves a continuous lamination line where two aluminum coils are thermally bonded to a central extruded core. This core typically consists of polyethylene (PE) or fire-retardant (FR) mineral compounds. You must clearly distinguish between the total panel thickness and the isolated metal layers. Total panel thickness usually ranges from 3mm to 6mm. The outer metal layers represent only a fraction of this total dimension. Evaluating a panel based solely on its total thickness creates massive engineering blind spots. A 4mm panel with 0.12mm skins behaves entirely differently in the field than a 4mm panel with 0.50mm skins. The core provides the spacing, but the metal skins provide the structural muscle.
Industry-standard manufacturing provides several distinct metal layer dimensions. Each dimension serves a specific functional purpose in construction and fabrication.
0.12mm: Extremely thin and flexible. Strictly for low-stress indoor use, flat mounting on drywall, and printed graphics. Cannot be routed or folded into cassettes.
0.21mm: Standard for interior partitions, hoarding boards, and lightweight flat signage.
0.30mm: The entry-level specification for low-rise exterior applications, small fascia panels, and flat shop fronts.
0.40mm: A robust mid-range option for moderate exterior facades, gas station canopies, and commercial buildings requiring shallow routed returns.
0.50mm and above: The mandatory baseline for high-rise structural cladding, large rainscreen cassettes, and heavy-duty environments facing high wind loads.
Evaluating a high-quality panel requires looking far beyond just the metal gauge. You must assess the ACP aluminum skin thickness in tandem with core adhesion strength and paint quality. Thick metal layers demand superior macromolecular adhesive films to prevent separation during thermal movement. Surface coating quality plays a massive role in longevity. Exterior panels require Polyvinylidene Fluoride (PVDF) or Fluoroethylene Alkyl Vinyl Ether (FEVE) coatings to resist UV degradation and chalking. Interior panels often utilize Polyester (PE) coatings. A thick metal skin coated with inferior PE paint will still fail aesthetically in an exterior environment, chalking and fading within a few years of solar exposure.
A successful specification achieves several non-negotiable outcomes on the job site. The installed panel must exhibit zero visible deflection or oil-canning post-installation. The material choice must maintain full warranty validity under the manufacturer's strict environmental terms. The facade system must pass all local wind-load compliance tests, including negative pressure pull-out tests. Achieving these criteria requires matching the metal thickness perfectly to the anticipated environmental loads and the structural grid spacing.

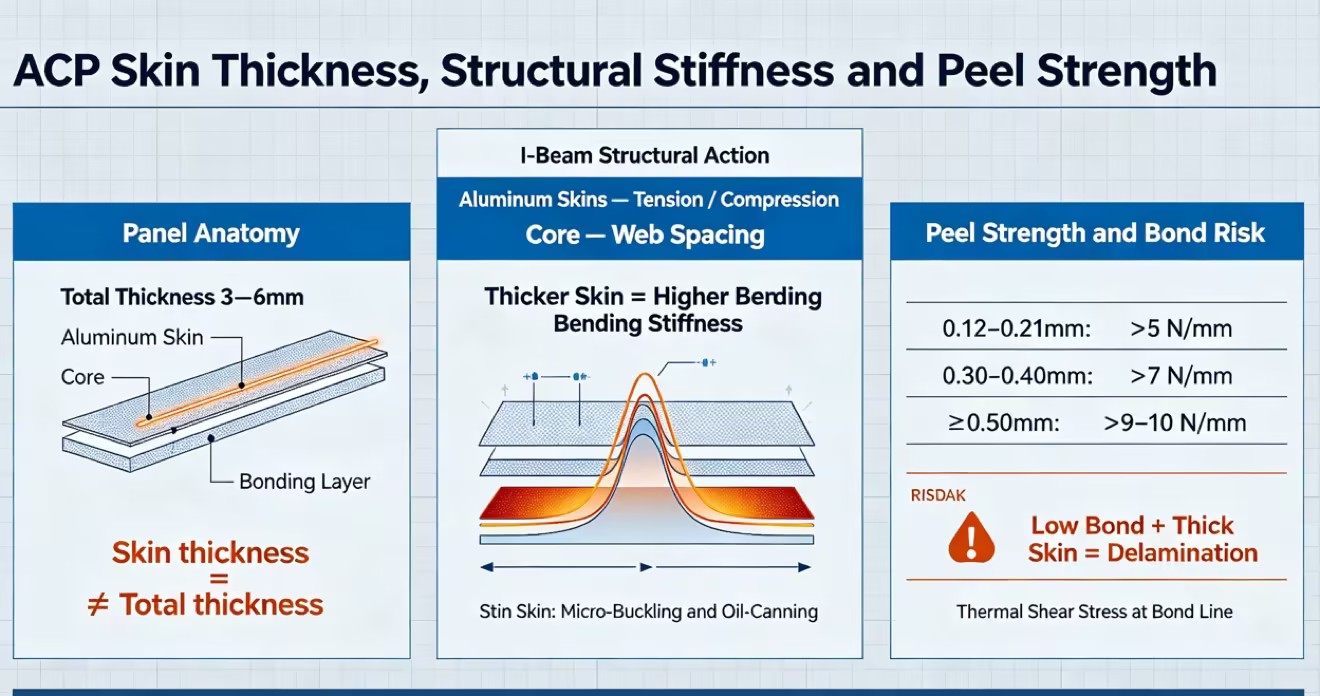

ACP uses a sandwich structure in which the aluminum skins and core work together to provide panel stiffness. Thicker aluminum skins generally improve bending resistance and help reduce visible oil-canning caused by wind, temperature changes, and large panel spans. At the same time, ACP provides a good strength-to-weight ratio, helping reduce facade weight and simplify handling and installation compared with heavier solid metal panels.
High-rise facades can experience strong positive and negative wind pressures, especially around building corners. ACP skin thickness affects panel stiffness and resistance around fixing points, while panel size, support spacing, and attachment design also influence overall performance. For demanding exterior applications, the appropriate skin thickness should be selected according to project wind-load calculations and relevant tests such as ASTM E330.
Blunt force resistance depends entirely on the outer metal layer. The core provides spacing, but virtually no impact resistance. When an object strikes the panel, the metal skin must absorb and distribute the kinetic energy.
Ground-level commercial zones experience high foot traffic. These areas face constant threats from accidental impacts, shopping carts, moving equipment, and vandalism. Specifying thicker skins (0.40mm to 0.50mm) prevents unsightly dents and punctures. Conversely, inaccessible upper-story facades rarely face blunt force impacts, aside from occasional hail. You can prioritize wind load resistance over impact strength in those specific upper zones, but the 0.50mm requirement usually remains for wind tolerance anyway.
Aluminum expands and contracts significantly with temperature fluctuations. The thermal expansion coefficient of aluminum dictates that the metal will move about 2.4mm per meter for every 100°C change in temperature. Extreme UV exposure and daily thermal cycling place massive stress on the facade system.
Thicker skins maintain dimensional stability far better than thin skins. They resist warping when exposed to intense afternoon sun. The increased mass absorbs and dissipates heat more evenly across the panel surface. This stability ensures the joint lines remain uniform, the silicone weather seals stay intact, and the panel does not bind against the aluminum extrusions over decades of exposure.
Thicker aluminum skins can place greater stress on the bond between the skin and core as temperatures change. If the bonding strength is insufficient, the aluminum skin may separate from the core, causing delamination, surface blistering, and reduced panel strength. Reliable bonding is therefore important for maintaining long-term ACP performance.
Humidity, wind loads, and thermal expansion can place additional stress on the bond between the aluminum skin and core, increasing the risk of delamination. Therefore, ACP performance depends not only on aluminum skin thickness but also on reliable adhesive quality and a properly controlled lamination process.
You must evaluate the adhesive films and core bonding quality rigorously using standardized testing. The industry standard metric for this is peel strength (e.g., ASTM D1781). Peel strength measures the exact force required to strip the aluminum skin away from the core, usually expressed in Newtons per millimeter (N/mm) or inch-pounds per inch.
A 0.50mm skin is useless if the manufacturer's bonding strength cannot withstand the proportional environmental stress. Always demand third-party peel strength testing reports from certified laboratories. Verify that the adhesive performance scales appropriately with the specified metal thickness. Never accept a thick-skinned panel with baseline interior-grade peel strength metrics.
Skin Thickness | Minimum Recommended Peel Strength | Primary Failure Risk if Substandard | Testing Standard Reference |
|---|---|---|---|
0.12mm - 0.21mm | > 5 N/mm | Edge peeling during handling | ASTM D1781 |
0.30mm - 0.40mm | > 7 N/mm | Blistering under moderate solar load | ASTM D1781 |
≥ 0.50mm | > 9 N/mm (Ideally >10 N/mm) | Catastrophic delamination, wind tear-out | ASTM D1781 |

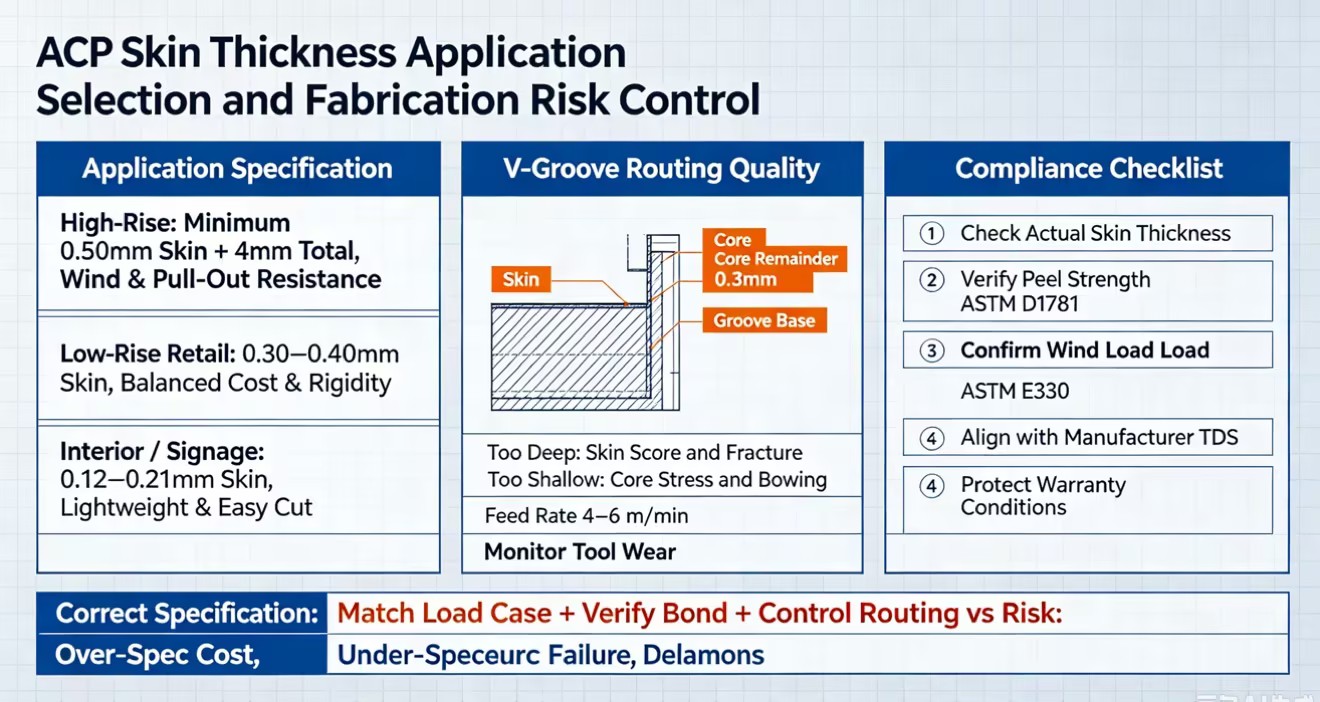

Different projects demand entirely different specifications. Applying a universal thickness across all applications guarantees either structural failure or wasted capital. Use this framework to align your requirements with field realities.
High-rise buildings face the most extreme environmental conditions. Wind loads increase exponentially with building height. Life-safety compliance remains the absolute highest priority for facade engineers.
Requirement: Minimum 0.50mm skin, minimum 4mm total thickness.
Justification: This specification provides maximum wind load resistance and fastener pull-out strength. It ensures long-term durability against dynamic weather patterns. It prevents oil-canning across large cassette sizes (e.g., 1500mm x 3000mm). This dimension meets the stringent life-safety compliance standards required for structural rainscreen cladding.
Low-rise structures face moderate weather exposure. They typically utilize standard structural grids with smaller panel spans. The environmental stress is significantly lower than high-rise applications, allowing for slight value engineering.
Requirement: 0.30mm to 0.40mm skin.
Justification: This range offers a perfectly balanced cost-to-performance ratio. It provides adequate rigidity for standard cassette sizes (e.g., 1220mm x 2440mm). It resists ground-level impacts effectively. You avoid the premium costs associated with heavy-duty structural panels while maintaining excellent aesthetic flatness for storefronts and canopies.
Indoor applications eliminate wind loads and extreme thermal cycling. The primary goals shift toward lightweight handling, easy fabrication, and strict budget adherence.
Requirement: 0.12mm to 0.21mm skin.
Justification: These environments exert virtually zero environmental stress on the panels. Thin skins prioritize lightweight handling for rapid installation on drywall or stud frames. They allow for intricate cutting and shaping for complex signage and channel letters. Specifying anything thicker for these applications results in unnecessary weight and budget bloat.
Every specification involves budgetary trade-offs. Over-engineering a project destroys your budget. Specifying a 0.50mm skin for an interior partition adds massive unnecessary costs in material and shipping weight. However, under-engineering creates catastrophic liability costs. Specifying a 0.21mm skin for an exterior facade guarantees failure, massive replacement costs, and potential legal action from the building owner.
Warranty validity hinges entirely on correct specification. Manufacturers explicitly define acceptable use cases for each thickness in their technical documentation. If you install interior-grade ACP aluminum skin thickness in high-stress exterior environments, manufacturers will void the warranty immediately upon inspection. You must align your procurement with the manufacturer's approved application guidelines to protect your investment and limit your liability.
Skin thickness interacts directly with fire safety ratings. Modern building codes strictly regulate combustible materials on facades. Panels must utilize Fire Retardant (FR) or A2 non-combustible mineral cores to meet regulations like NFPA 285 or EN 13501-1.
The metal thickness plays a supporting role in this fire performance. Thicker skins provide a slightly longer physical barrier against flame penetration, delaying the ignition of the core material. More importantly, certain local building codes and fire testing assemblies mandate minimum skin thicknesses (usually 0.50mm) to achieve specific fire rating certifications. You must cross-reference your local fire codes with the manufacturer's technical data to ensure full compliance before ordering material.
The thickness of the metal heavily impacts the fabrication process on the shop floor. Installers must route, fold, and bend the panels to create installation cassettes. Thin skins fold easily but tear if routed even slightly too deeply. Thick skins require precise tooling adjustments and heavy-duty CNC machinery.
You must mitigate implementation risks during fabrication by following strict machining protocols.
Routing a 0.50mm skin requires specialized V-groove router bits (typically 90-degree or 135-degree depending on the fold angle).
The thicker metal accelerates router bit wear. Fabricators must monitor tooling closely.
Operators must leave exactly 0.3mm of core material at the bottom of the V-groove. Routing too deep scores the opposite aluminum skin, causing it to snap during the folding process.
If the tooling becomes dull, the routing process will generate excessive friction heat. This heat can melt the core and crack the high-quality PVDF surface coating during the fold.
Installers must adjust their CNC feed rates and RPMs based on the metal thickness to ensure clean cassette folds.
Request comprehensive Technical Data Sheets (TDS) from your shortlisted manufacturers to verify exact metal dimensions and coating specifications.
Demand third-party wind load (ASTM E330) and peel strength (ASTM D1781) testing reports to validate the core bonding capabilities for your specific skin thickness.
Consult directly with a licensed facade engineer to calculate the exact dynamic wind loads for your specific building height, location, and structural grid.
Conduct a physical routing and folding test on sample panels to ensure your fabrication tooling and CNC feed rates match the specified metal thickness without cracking the paint.
A: Exterior structural cladding requires a minimum skin thickness of 0.50mm, paired with a total panel thickness of at least 4mm. This specification ensures adequate rigidity, prevents oil-canning, and provides the necessary tensile strength to withstand dynamic wind loads and thermal expansion in outdoor environments.
A: No. A thicker skin actually demands superior core adhesion. Thick metal exerts higher shear forces during thermal expansion. If the adhesive layer is weak, the increased stress from the thick skin will cause rapid delamination. You must verify high peel strength alongside metal thickness.
A: Thicker skins require precise tooling adjustments. Routing a 0.50mm panel accelerates router bit wear and demands slower feed rates. Dull tooling generates heat that can crack the paint during folding. Thinner skins fold easily but are highly susceptible to tearing if the V-groove is routed too deeply.
A: To prevent oil-canning on large spans, you must specify a minimum of 0.50mm. The increased metal mass provides the structural memory and bending stiffness required to maintain a perfectly flat surface, resisting the micro-buckling forces caused by uneven stress distribution and solar heat gain.
A: Yes, it plays a supporting role. While the core material primarily dictates fire resistance, thicker aluminum skins provide a more robust initial barrier against flame penetration. Furthermore, many building codes mandate specific minimum skin thicknesses to qualify for certified fire ratings.
A: A composite panel with 0.50mm skins offers the equivalent rigidity of a 3.3mm solid aluminum sheet but weighs approximately 40% less. This significant weight reduction lowers the dead load on the building structure, reducing framing costs and accelerating the installation process.
A: Buyers should use a calibrated digital micrometer to measure the metal layer directly. You must measure the skin after carefully peeling it away from the core and removing any protective films or paint layers. Always cross-reference these physical measurements with the manufacturer's provided Technical Data Sheets.
