The global tightening of building codes following high-profile facade fires has fundamentally shifted the baseline for exterior cladding materials. Rigorous fire classifications are now non-negotiable for modern construction. Architects, developers, and facade engineers face significant liability and project delays when navigating ambiguous fire ratings. You run a severe risk if you specify non-compliant or falsely certified cladding for any commercial structure. Understanding the exact technical parameters of the EN 13501-1 classification is mandatory for evaluating material safety accurately. You must ensure regulatory compliance and protect long-term real estate investments using the industry's highest standard in fire safety. We will break down the exact material composition, testing parameters, and field implementation strategies required to execute a compliant facade package without compromising structural integrity or architectural intent.
Classification Breakdown: A2-s1,d0 represents the highest practical fire safety standard for composite panels, indicating limited combustibility (A2), minimal smoke production (s1), and zero flaming droplets (d0).
Core Composition & Anatomy: Genuine A2-s1,d0 ACP requires a specialized sandwich structure featuring a core containing over 90% non-combustible mineral filler, significantly altering its weight and fabrication profile compared to legacy panels.
Verification is Mandatory: Market saturation of falsely certified panels requires strict evaluation of third-party lab reports and continuous batch testing during procurement.
Cost vs. Liability: While A2-s1,d0 panels carry a higher upfront material cost, they mitigate catastrophic liability risks and are increasingly mandated for high-rise and high-occupancy structures globally.
Table of Contents
Many professionals misunderstand European fire standards, leading to the misapplication of materials in high-risk zones. Building codes demand precise material behavior under fire conditions. We need to break down the EN 13501-1 classification parameters technically. This standard provides a comprehensive framework for evaluating reaction to fire, relying on specific laboratory tests to determine how a material contributes to fire growth, smoke generation, and droplet formation.
The "A2" rating defines a material as having limited combustibility. Most international building codes treat this as practically non-combustible for facade applications. Testing facilities measure the calorific potential of the panel components using the EN ISO 1716 standard. They use a bomb calorimeter to determine exactly how much energy the material releases when completely burned. For an A2 rating, the gross heat of combustion (PCS) must be exceptionally low, typically ≤ 3.0 MJ/kg for the core material.
Laboratories also subject the material to the Single Burning Item (SBI) test under EN 13823. This measures mass loss under sustained heat exposure and the Fire Growth Rate (FIGRA). Materials must show minimal contribution to fire growth. They cannot sustain a flame or add significant fuel to an existing fire. This strict criteria separates high-performance cladding from legacy combustible panels. When you specify A2-s1 d0 ACP, you guarantee the facade will not act as a fuel source during a localized exterior fire.
The "s1" designation focuses entirely on smoke production during combustion. Fire testing sets strict opacity and volume thresholds for smoke emissions using the SMOGRA (Smoke Growth Rate) measurement. The material must generate very little smoke when exposed to a direct flame. Specifically, the total smoke production (TSP) over 600 seconds must remain below 50 square meters.
Low smoke emission ensures clear evacuation routes inside and outside the building. It drastically reduces inhalation risks during a fire event. Smoke inhalation causes the majority of fire-related casualties, not the flames themselves. Specifying materials with an "s1" rating directly protects building occupants. It also provides firefighters with better visibility during rescue operations, allowing them to navigate stairwells and exterior perimeters safely.
The "d0" designation mandates zero flaming droplets or particles. This strict requirement applies within the first 10 minutes of fire exposure during the SBI test. The panel cannot melt, separate, and drop burning debris. Thermoplastic materials often fail this test because they liquefy and carry flames downward.
Preventing flaming droplets stops secondary fires from starting at lower building levels or igniting combustible materials on the ground. It also protects evacuees exiting the structure through ground-floor doors. First responders rely on this rating to safely approach the building perimeter without the threat of falling molten metal or plastic. It eliminates the vertical spread of fire through melting facade components.

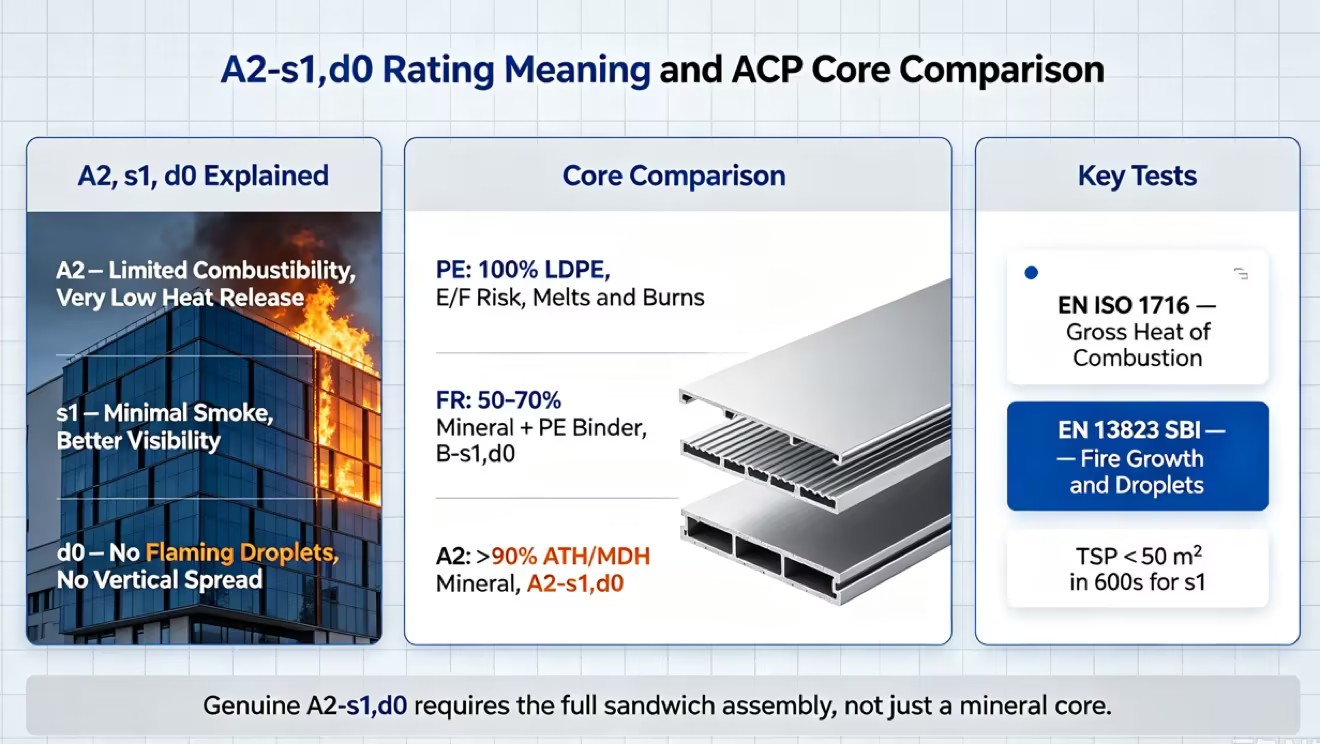

Comparing the three primary generations of composite panel cores reveals the evolution of facade safety. Material engineering has adapted to meet stricter regulatory demands. Understanding the chemical and structural differences helps you specify the correct product for your project and defend that specification during value engineering discussions.
PE core ACP uses a polyethylene (PE) core, which is combustible and can melt and burn under high temperatures, contributing to faster fire spread. Because of its higher fire risk, the use of PE core panels on building facades is restricted in many regions, especially for multi-story buildings, depending on local fire codes.
FR core ACP offers better fire performance than PE panels and commonly uses a mixture of mineral filler and polyethylene binder. It can achieve ratings such as B-s1,d0 under EN 13501-1, depending on the specific product. However, the polymer content remains combustible under prolonged high temperatures, so its use on high-rise or high-risk buildings may be restricted by local fire codes.

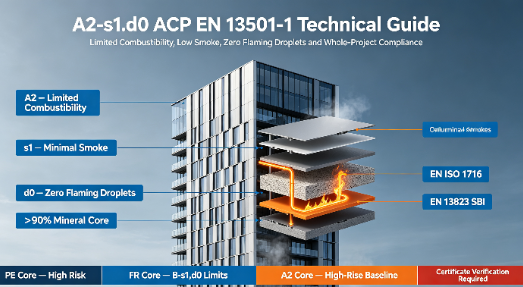

The anatomy of an A2 sandwich panel relies on specific, highly engineered layers. Each layer contributes to the overall fire performance, structural integrity, and weather resistance. You must understand these layers to evaluate manufacturer submittals properly.
Aluminum Facing: This provides the durable exterior skin. Manufacturers typically use 3003 or 5005 series aluminum alloys for superior tensile strength and corrosion resistance. It handles weather resistance and aesthetic finishing, protecting the core from environmental degradation. The standard thickness ranges from 0.4mm to 0.5mm.
Mineral Core: This is the primary safety component. It requires over 90% inorganic mineral filler. Manufacturers typically use Aluminum Trihydroxide (ATH) or Magnesium Hydroxide (MDH). These minerals undergo an endothermic reaction when heated. ATH releases water vapor at around 220°C, absorbing heat and suppressing flame spread. This specific chemical reaction achieves the A2 classification.
Adhesive Layers: The heavy mineral core requires specialized high-strength macromolecular bonding films. These adhesive layers fuse the inorganic core to the metal skins. They must withstand extreme thermal stress without delaminating. Poor quality adhesives lead to panel bubbling and structural failure.
Aluminum Backing: This completes the sandwich structure. It provides structural balance to prevent panel bowing and offers rear protection against moisture. It usually features a protective wash coat to resist oxidation from condensation within the facade cavity.
Core Type | Composition | Typical EN 13501-1 Rating | Application Suitability |
|---|---|---|---|
PE (Polyethylene) | 100% Thermoplastic (LDPE) | E or F (Highly Combustible) | Low-rise signage only. Banned for facades. |
FR (Fire Retardant) | 50-70% Mineral + PE Binder | B-s1,d0 | Low to mid-rise buildings (depending on local codes). |
A2 (Limited Combustibility) | >90% Inorganic Mineral (ATH/MDH) | A2-s1,d0 | High-rise, high-occupancy, and high-risk structures. |
Assessing manufacturer claims requires strict diligence. You must ensure the product delivered to the site matches the product specified in the architectural drawings. The market contains many panels with misleading documentation. You need a robust evaluation process to filter out non-compliant materials before they reach the construction site.
Request a complete EN 13501-1 classification report from the manufacturer and check relevant quality certifications such as ISO 9001. The report should clearly identify the tested ACP product, including panel thickness, core composition, adhesive system, and coating. Make sure the report applies to the complete panel configuration being purchased rather than relying only on test data for the core material.
Check that the fire test report matches the exact product being purchased, including the product name and specifications. Pay attention to outdated or inconsistent documents and missing batch information. When necessary, confirm the report number with the testing or certification body and maintain clear product and batch records throughout procurement.
Coating quality and bonding strength are important for the long-term performance of A2 ACP. The bonding system should provide reliable adhesion between the mineral core and aluminum skins, while a high-quality PVDF coating helps resist fading, chalking, and outdoor weathering. Buyers should review relevant bonding and weathering test data to confirm the panel meets project requirements.
Balancing safety mandates with structural realities requires careful planning. Upgrading to the highest fire classification changes how you handle the material on site and in the fabrication shop. You must account for these physical differences early in the design phase to avoid cost overruns and installation delays.
Analyze the density difference carefully. A2 cores are significantly heavier than PE or FR cores. A standard 4mm A2 panel weighs approximately 7.5 to 8.5 kg/m², whereas a 4mm PE panel weighs around 5.5 kg/m². The high mineral content increases the panel's overall mass by up to 50%.
This extra weight impacts sub-framing design and fixing systems. The facade engineer must adjust overall dead load calculations. You will likely need heavier gauge aluminum extrusions for the support grid. Anchor pull-out calculations must reflect the increased facade weight, potentially requiring deeper embedment or closer bracket spacing. Ignoring these structural load implications can lead to mechanical failures, especially under high wind loads.
The high mineral content of A2 ACP can increase wear on CNC cutting tools, so suitable tooling and machining settings are important. During cutting and V-grooving, parameters such as feed rate, spindle speed, and groove depth should be adjusted according to the panel, tool, and equipment. Proper machining helps produce clean edges and folds while reducing the risk of core cracking or damage to the aluminum skin.
Machining Parameter | Standard PE/FR Panel | A2-s1,d0 Panel |
|---|---|---|
Tooling Type | Standard Carbide | Polycrystalline Diamond (PCD) |
Spindle Speed | 20,000 - 24,000 RPM | 18,000 - 22,000 RPM |
Feed Rate | 6 - 8 meters/min | 4 - 6 meters/min |
V-Groove Core Remainder | 0.2mm - 0.3mm | 0.3mm - 0.5mm |
You must engineer the sub-framing system to accommodate the specific thermal expansion properties of the composite panel. Aluminum expands and contracts with temperature fluctuations. A 3-meter panel can expand by up to 3mm under a 40°C temperature change.
Design the cassette fixing system with sliding points and fixed points. Use specialized facade rivets with a standoff head to allow the panel to move independently of the aluminum rail. Ensure the joint gaps between panels (typically 15mm to 20mm) are wide enough to absorb this movement without causing the panels to buckle or the weather sealant to tear.
Aligning material choice with strict jurisdictional requirements ensures scalability across different markets. Building codes vary wildly across different regions, but the underlying physics of fire safety remain constant. You must navigate local and international codes effectively to ensure compliance and secure building permits.
The EN 13501-1 standard translates well across many regions. It serves as a globally recognized benchmark for material safety. While it is a European standard, authorities in the Middle East, Asia, and parts of South America accept it as proof of performance.
It often parallels requirements like NFPA 285 in the United States, which tests the entire wall assembly rather than just the panel. An A2-rated panel is highly likely to pass an NFPA 285 assembly test when paired with non-combustible insulation. It aligns closely with BS 8414 testing in the UK and AS 5113 in Australia. Understanding how these codes intersect helps you specify materials for international projects. Always consult local fire engineers to confirm specific jurisdictional acceptance before finalizing the specification.
High-rise and high-risk building requirements dictate strict compliance. Height thresholds vary by region. They typically sit at 11 meters, 18 meters, or 25 meters. Above these heights, the highest fire ratings become legally mandatory. Combustible materials are strictly prohibited on these facades because exterior firefighting operations become impossible above the reach of standard ladder trucks.
This standard also applies to high-occupancy structures regardless of height. Hospitals, schools, aged care facilities, and airports require maximum safety. Evacuation times in these buildings are longer due to mobility issues or sheer crowd density. The facade must not contribute to fire spread under any circumstances, giving occupants maximum time to escape.
Documentation for inspectors and insurers is critical for project handover. Outline the strict chain of custody required for compliance. This starts with manufacturer batch testing reports tied to specific production runs. It includes delivery dockets matching the certified product codes printed on the back of the panels.
It ends with the final installer sign-off and photographic evidence of the installation, showing correct rivet spacing and fire barrier placement. Building certifiers and insurance underwriters demand this paper trail. Missing documentation can delay building occupancy permits indefinitely. Maintain a digital ledger of all material certificates, delivery notes, and QA/QC inspection sheets from day one of the project.
Demand full EN 13501-1 classification reports covering the entire composite panel assembly directly from the testing laboratory.
Adjust your structural engineering calculations to accommodate the 7.5 - 8.5 kg/m² weight of high-mineral panels.
Specify Polycrystalline Diamond (PCD) CNC tooling and reduce feed rates to 4-6 meters per minute to prevent core damage during fabrication.
Implement a strict chain of custody documentation system from factory batch testing to final installation sign-off to satisfy building certifiers.
A: The main difference lies in the core composition. FR panels contain 50-70% mineral filler mixed with a combustible polyethylene binder. A2 panels contain over 90% inorganic mineral filler, such as Aluminum Trihydroxide. This makes A2 panels practically non-combustible, whereas FR panels still pose a fire risk under extreme heat.
A: No. The high mineral content in the core acts as an abrasive and causes rapid wear on standard router bits. You must use specialized diamond-tipped tooling. You should also lower your CNC feed rates to 4-6 meters per minute to prevent edge fraying and core cracking.
A: No. A valid EN 13501-1 classification report must cover the entire composite panel assembly. This includes the aluminum skins, the mineral core, the adhesive layers, and the exterior PVDF coating. Testing the core in isolation does not reflect how the panel behaves in a real fire.
A: A2 panels are heavier because they replace lightweight thermoplastic polyethylene with dense inorganic minerals. Minerals like aluminum hydroxide have a much higher specific gravity. This density increases the overall weight to around 8 kg/m², requiring stronger sub-framing and fixings.
A: The "d0" rating means the material produces zero flaming droplets or particles within the first 10 minutes of fire exposure. This prevents melting debris from falling down the facade. It stops secondary fires from igniting below and protects escaping occupants and arriving firefighters.
A: They are not mandatory for every single building type. However, most modern building codes legally require them for high-rise structures above specific height thresholds, usually 18 meters. They are also typically mandatory for high-occupancy and high-risk buildings like hospitals and schools, regardless of height.
