Views: 0 Author: Site Editor Publish Time: 2026-08-27 Origin: Site
High-rise building facades operate in extreme environments. They face severe wind loads, intense UV exposure, and stringent life-safety regulations daily. Material failure at elevation is catastrophic, causing massive structural damage and financial ruin. Architects, developers, and facade engineers must balance aesthetic vision with non-negotiable structural integrity and fire compliance. Selecting the wrong Aluminum Composite Panel (ACP) specification leads to thermal bowing, coating degradation, or severe code violations that halt construction. You need materials that perform flawlessly under continuous environmental assault.

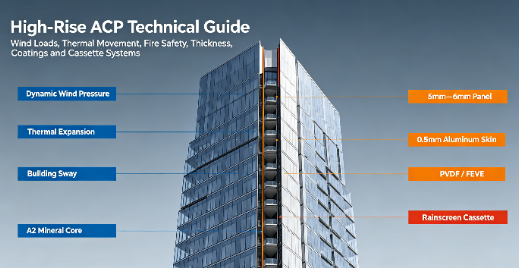

This guide provides a technical framework for evaluating and specifying ACP for high rise buildings. We focus on core composition, panel thickness, coating technologies, aesthetic customization, and installation methodologies. By understanding these engineering parameters, you ensure long-term performance, strict code compliance, and structural stability for your next tower project.
Fire Safety is Binary: High-rise applications strictly require A2 (non-combustible) or high-grade FR (fire-retardant) mineral cores; traditional polyethylene (PE) cores are universally non-compliant for towers.
Thickness Dictates Stability: While 4mm panels suit mid-rise structures, towers exceeding 20 stories typically require 5mm to 6mm panels with a minimum 0.5mm aluminum skin to withstand dynamic wind pressures.
Coating Chemistry Matters: PVDF or FEVE fluoropolymer coatings are mandatory for high-altitude UV resistance, scratch resistance, and long-term color retention.
Design Flexibility Meets Performance: Modern ACP allows for extensive aesthetic customization—including complex geometries and premium textures—without compromising the structural weight limits of high-rise facades.
System Integration is Critical: The panel is only as reliable as its fixing system; engineered cassette systems with proper thermal expansion allowances are required to prevent panel deflection and sealant failure.
Table of Contents
Designing cladding for structures exceeding 20 stories requires a deep understanding of altitude-specific stressors. Facade materials must perform flawlessly under continuous environmental assault. You cannot treat a 40-story tower like a five-story commercial block. The physical forces multiply exponentially as elevation increases, demanding rigorous engineering and precise material selection.

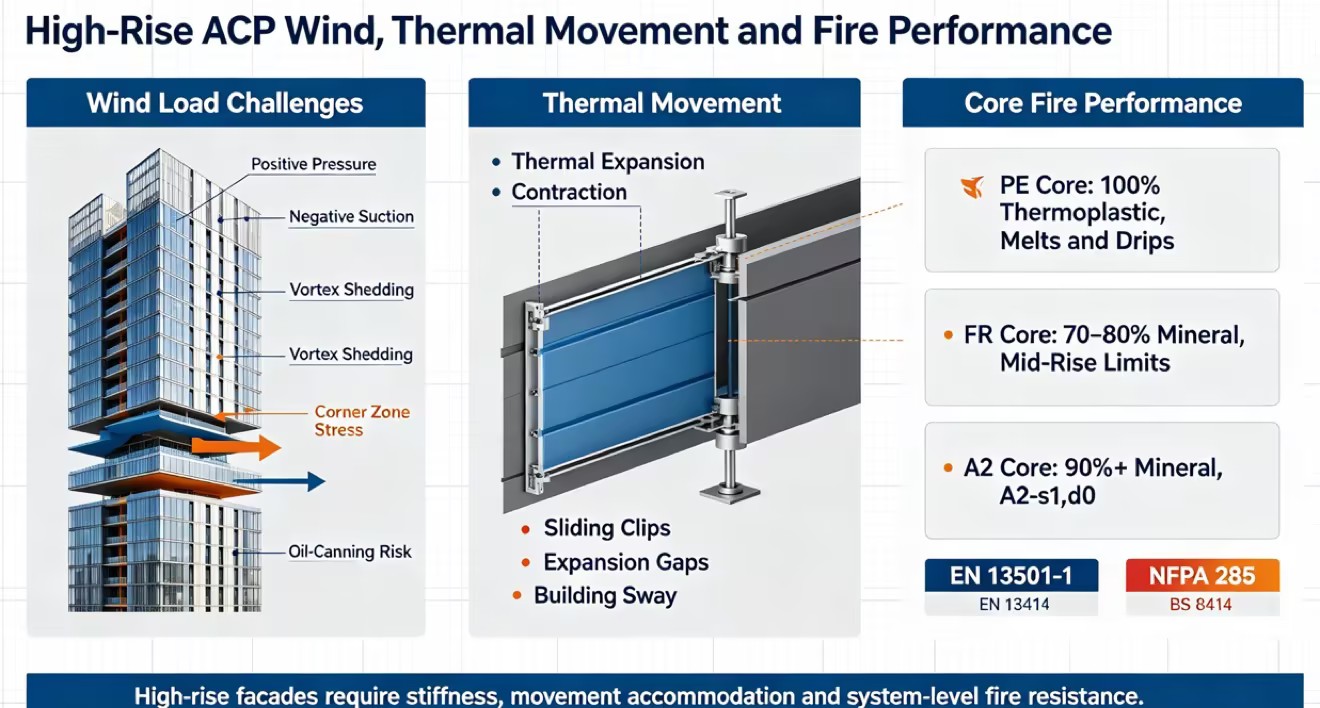

Wind pressure is the primary structural challenge for tall building envelopes. Positive wind loads push the panels inward against the sub-frame, while negative wind loads pull them outward. Negative pressure is often more destructive. It creates extreme suction forces that can rip improperly specified panels directly from their fixings.
Facade engineers rely on wind tunnel testing to map these forces across the building envelope. You must account for several specific aerodynamic phenomena when specifying cladding for tall structures:
Vortex Shedding: As wind hits a tall structure, it creates alternating low-pressure vortices on the leeward side. This causes dynamic oscillations. Facade panels must possess sufficient stiffness to resist this continuous buffeting without fatiguing the metal or the rivets.
Corner Zone Stresses: Wind accelerates sharply around building corners. These zones experience localized negative pressures significantly higher than the center of the elevation. Panel specifications often require thicker gauges, reinforced stiffeners, or tighter sub-frame spacing at these critical junctions.
Oil-Canning Prevention: Insufficiently stiff panels will buckle or ripple under wind pressure. This optical distortion ruins the architectural aesthetic and indicates structural inadequacy. A thicker core and robust aluminum skins prevent this deflection.
High-rise ACP panels expand and contract as temperatures change, especially under direct sunlight. If this movement is restricted, panels may warp and place additional stress on fixings. Proper installation should therefore include suitable expansion gaps and fixing methods, such as sliding points, that allow the panels to move safely with temperature changes.
Tall buildings are designed to move. Wind and seismic forces cause lateral displacement, known as inter-story drift. The facade system must absorb this structural movement. If the cladding is too rigid, building sway will crush the panels or shatter the weather seals. Rainscreen systems utilizing sliding brackets allow the primary structure to flex independently of the exterior skin, maintaining the integrity of the weatherproofing layer.
Life safety dictates every decision in high-rise facade engineering. The core material of your composite panel determines its fire performance. Specifying the correct core is the most critical step in mitigating catastrophic fire spread up the exterior of a building.
The internal layer sandwiched between the aluminum skins defines the panel's combustibility. Industry standards categorize these cores based on their mineral content and fire behavior. You must understand the chemical makeup of these cores to ensure code compliance.
Polyethylene (PE) Cores: These cores consist of 100% combustible plastic. They melt, drip, and ignite rapidly when exposed to flame. PE cores are universally banned for high-rise applications across all modern building codes. Never specify PE panels for towers.
Fire Retardant (FR) Cores: FR panels contain a blend of combustible polymer and non-combustible minerals, typically Aluminum Trihydroxide (ATH) or Magnesium Hydroxide (MDH). A high-quality FR core consists of 70% to 80% mineral content. When heated, ATH releases water vapor, cooling the panel and suppressing flame spread. They suit many mid-rise applications, but their use in high-rises depends strictly on local jurisdiction rules.
A2 Non-Combustible Cores: This is the global gold standard for high-rise facades. A2 cores contain 90% or more inorganic minerals. They produce virtually no smoke, do not contribute to fire propagation, and release zero flaming droplets. For maximum safety and compliance, A2 panels are the mandatory choice for skyscrapers.
Certifications validate core performance. You must verify that the specified panels meet rigorous international testing criteria. Relying on manufacturer claims without independent laboratory testing is a massive liability.
EN 13501-1 (Europe): Look for the Class A2-s1, d0 rating. This indicates non-combustibility (A2), minimal smoke production (s1), and zero flaming droplets (d0).
NFPA 285 (USA): This standard evaluates the fire propagation characteristics of exterior non-load-bearing wall assemblies. It is a pass/fail test that determines if fire will spread vertically or horizontally across the facade.
BS 8414 (UK): A large-scale test assessing the fire performance of external cladding systems applied to the face of a building, simulating a fire breaking out of a window and impinging on the facade.
Fire safety relies on system testing, not just component testing. A non-combustible panel can still fail if installed over combustible insulation or without proper cavity fire barriers. The entire facade assembly—insulation, weather barriers, framing, and panels—must pass full-scale tests like NFPA 285 or BS 8414 together. Intumescent cavity barriers must be installed at every floor slab to block the chimney effect within the rainscreen cavity.
Physical dimensions directly impact structural stability. You must match the panel thickness and aluminum gauge to the specific wind loads of your project. Underspecifying thickness to save upfront costs guarantees long-term failure.
Standard commercial panels measure 4mm in total thickness. This dimension works perfectly for low-rise commercial buildings, retail podiums, and interior applications. The wind pressures at these lower elevations rarely exceed the structural capacity of a 4mm composite sheet.
High-rise structures demand greater rigidity. For towers exceeding 20 stories, engineers typically specify 5mm or 6mm panels. The increased core thickness exponentially improves the panel's moment of inertia. This extra rigidity prevents deflection under extreme negative wind suction. It keeps the facade visually flat and structurally secure during severe weather events. When evaluating ACP for high rise buildings, always default to thicker cores for elevations above 100 meters.
The overall thickness is only half the equation. The thickness of the top and bottom aluminum skins dictates the panel's tensile strength and fabrication limits. The skins bear the brunt of the structural load.
The 0.5mm Standard: For high-rise applications, a minimum aluminum skin thickness of 0.5mm is non-negotiable. Thinner skins (like 0.3mm or 0.4mm) lack the mechanical strength required for tall buildings. They are highly susceptible to puncturing, tearing at the rivet points, and rippling under stress. When routing a V-groove for folding, a 0.5mm skin leaves enough material to maintain corner strength.
Alloy Selection: The specific aluminum alloy matters. 3000-series alloys (like 3003 or 3105) offer excellent formability and moderate strength, making them common for standard flat facades. However, 5000-series alloys (like 5005) provide superior tensile strength and better marine-grade corrosion resistance. Engineers often specify 5000-series alloys for complex folded cassettes in high-wind coastal environments where salt spray accelerates degradation.
Site managers must verify material deliveries to ensure the specified panels match the engineered drawings.
Measure the total panel thickness using digital calipers at multiple points along the edge.
Request mill certificates from the manufacturer confirming the exact aluminum alloy series.
Verify the skin thickness by measuring the aluminum layer independently of the core and coating.
Check the core color and consistency; A2 cores are typically light gray or white due to the high mineral content, whereas PE cores are black.
High-altitude environments subject building exteriors to relentless ultraviolet radiation, airborne pollutants, and abrasive particulate matter. The surface coating must protect the aluminum substrate while maintaining its architectural color for decades. Repainting a 50-story tower is logistically complex and financially prohibitive.
Fluoropolymer resins are mandatory for high-rise exterior applications. Standard polyester (PE) coatings degrade quickly under continuous UV exposure, leading to rapid chalking, fading, and eventual delamination.
PVDF (Polyvinylidene Fluoride): This is the industry standard for architectural coatings. PVDF paints contain 70% fluoropolymer resin. They offer exceptional resistance to UV degradation, chemical attack, and airborne pollutants. PVDF is ideal for matte, satin, and solid color finishes. It requires high-temperature baking during the coil coating process, ensuring a permanent bond to the aluminum.
FEVE (Fluoroethylene Vinyl Ether): FEVE coatings provide similar weatherability to PVDF but offer a distinct aesthetic advantage. The chemical structure of FEVE allows for much higher gloss levels and brighter, more vibrant colors. It also cures at room temperature, making it suitable for field touch-ups if panels suffer minor damage during installation.
Coating Type | Resin Base | Gloss Range | UV Resistance | Best Application |
|---|---|---|---|---|
PVDF | 70% Fluoropolymer | Low to Medium (20-40%) | Excellent (20+ Years) | Matte finishes, solid colors, metallics on high-rises. |
FEVE | Fluoropolymer | High (Up to 90%) | Excellent (20+ Years) | High-gloss corporate colors, vibrant architectural accents. |
Standard PE | Polyester | Medium to High | Poor (Fades in 3-5 Years) | Interior applications, temporary structures. Never high-rises. |
While high-rise panels escape pedestrian-level vandalism, they still face abrasive forces from wind-blown sand, industrial fallout, and window-washing equipment. Suspended scaffolding can easily scratch standard paint finishes.
Specifying a high-hardness clear coat over the color layer significantly improves abrasion resistance. This protective layer acts as a sacrificial barrier, preserving the pigment underneath. For buildings in highly polluted urban centers, self-cleaning topcoats utilize hydrophilic properties. Rainwater sheets off the surface, washing away dirt and reducing long-term maintenance cycles. This keeps the facade looking pristine without requiring constant manual cleaning.
Coating performance relies on proper application thickness, measured in microns. A standard high-rise specification requires a two-coat system (primer and color coat) totaling at least 25 to 30 microns. Coastal marine environments demand a three-coat system (primer, color, and clear topcoat) exceeding 35 microns to prevent salt-spray corrosion.
Always evaluate the manufacturer's coating warranty carefully. Look beyond the duration. Examine the specific limits for chalking and fading. Fading is measured in Delta E units. A robust warranty guarantees a Delta E shift of less than 5 units over a 20-year period, ensuring the building retains its original visual intent regardless of sun exposure.
Architects choose composite panels because they offer unparalleled design freedom. They bridge the gap between structural necessity and creative vision. Modern manufacturing techniques allow these panels to assume almost any visual identity while maintaining strict weight controls.
Advanced coil-coating technology enables material mimicry. Panels can replicate the exact visual texture of natural wood grain, brushed stainless steel, oxidized corten, or polished marble. This provides a massive structural advantage for tall buildings.
Cladding a 50-story tower in actual stone or solid weathering steel adds prohibitive dead load to the building's foundation. It also complicates seismic engineering. Mimicry finishes deliver the heavy, natural aesthetic at a fraction of the weight. Furthermore, custom color matching allows developers to specify exact corporate brand colors. Continuous coil coating ensures batch-to-batch uniformity, preventing the patchwork effect often seen with powder-coated solid metals.
The composite structure provides unique fabrication advantages. The material is highly formable without losing its structural integrity. You can shape it to match aggressive architectural curves and sharp angles.
Routing and Folding: Fabricators use CNC routers to cut V-shaped grooves into the back of the panel, leaving the front aluminum skin intact. The panel is then folded along this groove to create crisp, 90-degree corners. This technique forms the rigid cassettes used in rainscreen systems. The precision of the CNC router ensures every cassette matches the engineered dimensions perfectly.
Curved and Parametric Designs: Unlike brittle materials, composite sheets can be cold-bent or passed through heavy rollers. This allows them to clad cylindrical columns, sweeping curved elevations, and complex parametric facades. The material adapts to the geometry rather than forcing the architecture to remain flat. The minimum bending radius is typically 15 times the panel thickness, allowing for tight, smooth curves.
Evaluating facade materials requires comparing structural performance, weight, and safety profiles. Understanding these trade-offs ensures the right material goes on the right building. No single material solves every architectural problem, but composite panels offer the most balanced performance matrix for high-rises.
Solid aluminum sheets (typically 3mm thick) are 100% non-combustible and highly recyclable. They present zero fire risk. However, they are significantly heavier than composite alternatives. Solid sheets lack the inherent rigidity of a sandwich panel. To prevent severe oil-canning under wind loads, fabricators must weld extensive aluminum stiffeners to the back of every solid panel. This drastically increases fabrication time, labor costs, and the overall weight of the facade assembly.
HPL panels consist of resin-impregnated kraft paper compressed under high heat. They offer exceptional scratch resistance and beautiful natural aesthetics. However, HPL is very dense and heavy. It carries different fire-rating profiles that require careful code review. In extreme, continuous wet weather, lower-quality HPL panels risk edge delamination if not properly sealed. They also lack the folding capabilities of aluminum composites, requiring exposed edge designs.
Fiber cement offers a rugged, matte aesthetic and is completely non-combustible. However, it is extremely heavy and brittle. It cannot be folded into cassettes and typically requires face-fastening with exposed rivets. The heavy weight increases the required strength of the aluminum sub-frame, driving up overall system costs.
Feature | A2 Composite Panels | Solid Aluminum (3mm) | Exterior HPL (8mm) | Fiber Cement (8mm) |
|---|---|---|---|---|
Weight (per sqm) | Approx. 7.5 kg - 8.0 kg | Approx. 8.1 kg (plus heavy stiffeners) | Approx. 11.5 kg - 14.0 kg | Approx. 14.0 kg - 16.0 kg |
Fire Performance | Non-combustible (A2 core) | Non-combustible (A1) | Varies (Requires specific FR grades) | Non-combustible (A1) |
Rigidity & Flatness | Excellent (Inherent sandwich structure) | Moderate (Requires welded stiffeners) | Excellent | Good (But brittle) |
Formability | High (Easy routing and folding) | Moderate (Requires heavy brake presses) | Low (Cannot be sharply folded) | None (Flat sheets only) |
A premium panel fails if installed incorrectly. The fixing methodology is just as critical as the panel specification. High-rise installations require engineered systems designed for dynamic movement. You cannot simply screw panels to a wall and expect them to survive at 300 feet in the air.
You must select an installation framework that accommodates wind loads, thermal expansion, and building sway.
Cassette (Rainscreen) Systems: This is the mandatory standard for high-rise towers. Fabricators fold the panel edges to create a 3D cassette. These cassettes hang on an extruded aluminum sub-frame using specialized clips. The system features hidden fasteners, creating a clean aesthetic. More importantly, the clips allow the panel to slide laterally, absorbing thermal expansion without stressing the metal. The open joints equalize wind pressure, preventing water from being sucked into the wall cavity.
Face-Fastened Systems: Installers drive rivets directly through the panel face into the sub-frame. While cost-effective, it is visually intrusive. For high-rises, this method requires precise oversized hole drilling. The rivet must clamp the panel loosely enough to allow thermal sliding. If tightened too much, the panel will buckle as temperatures rise. This method is generally avoided on premium high-rise projects due to aesthetic and performance limitations.
Field teams must follow strict protocols to ensure the rainscreen system functions as engineered.
Install the primary aluminum brackets to the concrete slab, ensuring thermal isolators are placed between the bracket and the wall to prevent cold bridging.
Align the vertical T-profiles or L-profiles using laser levels to ensure a perfectly plumb sub-frame.
Attach the sliding clips to the panel cassettes in the fabrication shop to maintain strict quality control.
Hang the cassettes onto the vertical profiles, ensuring the fixed point is secured while all other points are allowed to slide.
Install intumescent cavity fire barriers at every floor line to compartmentalize the air gap.
Field errors compromise structural integrity. Strict quality control during fabrication and installation prevents these common failures.
Inadequate Routing: When V-grooving the panel for folding, the router bit must leave exactly 0.2mm to 0.3mm of core material on the aluminum skin. If the router cuts too deep and scores the aluminum, the metal will micro-fracture during folding. Over time, wind loads will snap the folded edge completely off, causing the panel to fall.
Sealant Incompatibility: If using a sealed-joint system instead of an open rainscreen, the weather silicone must be chemically compatible with the PVDF coating. Incompatible sealants cause plasticizer migration, leaving permanent, ugly stains on the panel face. They also suffer adhesion failure, allowing water to breach the envelope.
Galvanic Corrosion: Aluminum reacts aggressively when in direct contact with dissimilar metals, especially carbon steel or copper, in the presence of moisture. Installers must isolate the aluminum panels and sub-frames using neoprene gaskets or specialized barrier tapes to prevent bimetallic corrosion from destroying the fixings over time.
Specifying facade materials for tall structures requires balancing aesthetics with rigorous safety and performance metrics. When executed correctly, composite panels offer unmatched design flexibility and structural reliability. To ensure your next high-rise project succeeds, implement these immediate next steps:
Audit your local building codes to confirm exact fire-rating requirements before specifying core materials.
Mandate full-assembly fire testing documentation from your manufacturer rather than accepting isolated component certificates.
Specify a minimum 0.5mm aluminum skin thickness and 5000-series alloys for projects in high-wind or coastal zones.
Require mock-up panels on-site to verify V-groove routing tolerances and sealant compatibility before full-scale fabrication begins.
A: It is highly discouraged. While 4mm panels are standard for mid-rise structures, the extreme negative wind pressures on a 30-story building require higher rigidity. Engineers typically specify 5mm or 6mm panels to prevent deflection, oil-canning, and structural fatigue at those elevations.
A: The difference lies in the mineral content. A standard Fire Retardant (FR) core contains roughly 70% to 80% non-combustible minerals mixed with polymers. An A2 core contains 90% or more inorganic minerals, classifying it as strictly non-combustible and producing zero flaming droplets during a fire.
A: Warping, or thermal bowing, occurs when the installation system restricts natural thermal expansion. Aluminum expands when heated by the sun. If the panel is rigidly screwed to the sub-frame without oversized holes or sliding clips, the trapped metal has nowhere to go and buckles outward.
A: Yes. PVDF is a liquid fluoropolymer coating applied during the continuous coil manufacturing process. It offers superior UV resistance, better color consistency across large batches, and tighter film integrity compared to post-fabrication powder coating, which can vary in thickness and fade faster.
A: Maintenance teams use suspended scaffolding or water-fed pole systems. Panels should be washed with mild, non-abrasive detergents and soft brushes. Avoid harsh solvents or high-pressure power washing at close range, as these can degrade the clear coat and damage weather sealants.
A: A rainscreen cassette system involves folding the panel edges to create a rigid, box-like shape. These cassettes are hung on a track system with open joints. This design equalizes air pressure, allows for thermal movement, and drains any moisture that penetrates the outer skin behind the panel.
