The architectural integrity and visual longevity of an Aluminum Composite Panel project rely fundamentally on its surface coating. Choosing the correct finish dictates how a building envelope withstands environmental stress over decades. Specifying the wrong coating leads to premature degradation. You will see severe chalking, rapid color fading, and physical delamination on the facade. These failures compromise the building envelope and require extensive remediation. We evaluate surface finishes based on chemical properties, performance metrics, and application suitability. Understanding these variables ensures optimal specification for commercial and architectural applications. Engineers, architects, and fabricators must align the coating technology directly with the environmental demands of the installation site. A mismatch here guarantees structural headaches down the line. This guide provides an evidence-based framework for evaluating PVDF and PE coatings. We compare their chemical properties and performance metrics to ensure optimal specification for commercial and architectural applications.
Application Suitability: PVDF is the industry standard for long-term, exterior architectural facades due to superior weatherability, while PE is highly cost-effective for interior applications, signage, and short-term exterior projects.
Durability vs. Cost: PVDF coatings typically offer double the lifespan and UV resistance of PE coatings but require a higher initial investment.
Performance Metrics: PVDF excels in chemical resistance, gloss retention, and color consistency in harsh environments (coastal, industrial), whereas PE offers excellent flexibility and adhesion for complex fabrication in controlled environments.
Table of Contents
Polyvinylidene Fluoride represents a highly non-reactive thermoplastic fluoropolymer. It serves as the benchmark for architectural surface finishes. The formulation relies on a specific resin blend to achieve optimal performance. Industry standards require a composition of exactly 70% fluoropolymer resin and 30% acrylic resin. This specific ratio balances extreme weatherability with the necessary physical flexibility for panel fabrication. Formulations dropping below the 70% threshold fail to meet high-performance architectural standards and degrade much faster under solar load.
The exceptional durability of this coating stems directly from its molecular structure. The carbon-fluorine bond stands as one of the strongest chemical bonds in organic chemistry. This bond requires massive amounts of energy to break. Consequently, it easily resists degradation from ultraviolet radiation, thermal cycling, and airborne chemicals. The dense molecular structure prevents atmospheric pollutants from penetrating the surface. This creates a highly stable finish that maintains its physical and visual properties across decades of continuous exposure.
Manufacturers apply this coating through a continuous coil process. This automated application guarantees uniform film thickness across miles of aluminum substrate. The standard application process involves several distinct stages:
Alkaline cleaning removes rolling oils and surface contaminants from the raw aluminum coil.
Chemical conversion coating creates an oxidation layer to promote mechanical adhesion.
Rollers apply a specialized primer coat, which bakes in a high-temperature oven.
Rollers apply the fluoropolymer topcoat, containing the primary color pigments.
The coil enters a final curing oven to cross-link the acrylic components and solidify the finish.
Polyester is a versatile synthetic polymer coating widely used in panel manufacturing. It consists of polyester resins cross-linked with melamine or isocyanate curing agents. This chemical structure provides excellent flow and leveling properties during application. Manufacturers favor this finish for its broad color matching capabilities. It easily accommodates custom vibrant shades that remain chemically impossible to achieve with fluoropolymers. You can specify exact corporate brand colors with high saturation levels using this resin system.
The molecular backbone of this coating relies heavily on ester linkages. While these bonds provide excellent initial mechanical properties, they remain highly susceptible to photo-chemical degradation. Ultraviolet photons carry enough energy to cleave these ester bonds over time. As the polymer chain breaks down, the surface begins to microscopically erode. This erosion manifests visually as chalking and a rapid loss of surface gloss. Installers working in high-UV index regions notice this degradation within just a few years of exterior exposure.
Despite lower UV resistance, this synthetic polymer offers distinct manufacturing advantages. It cures rapidly at lower temperatures compared to fluoropolymers. The resulting film possesses remarkable flexibility and surface adhesion. Fabricators subject these panels to extreme bending, routing, and folding without fracturing the paint film. Furthermore, the formulation allows for ultra-high gloss finishes. It achieves gloss levels exceeding 80 Gloss Units (GU), making it ideal for highly reflective interior designs and retail branding.
The architectural cladding market includes intermediate options between standard synthetic polymers and premium fluoropolymers. High-Density Polyester (HDP) serves as a notable middle-ground alternative. HDP formulations utilize advanced resin structures with higher molecular weights. They incorporate specialized UV inhibitors and ceramic pigments. This upgrades their weather resistance significantly above standard formulations. They bridge the performance gap but still fall short of the extreme longevity provided by a 70% fluoropolymer blend.
Coil-coated finishes also differ fundamentally from post-fabrication powder coating. Continuous coil coating applies wet paint to flat aluminum rolls before panel lamination. This guarantees absolute uniformity in film thickness and exact color consistency across massive production batches. Powder coating applies dry thermoplastic powder to pre-formed metal shapes using electrostatic charges. While powder coating works well for complex extrusions, coil coating remains superior for flat composite panels. It ensures the tightest color tolerances required for expansive building facades.
Ultraviolet radiation acts as the primary destructive force for exterior architectural finishes. A direct comparison of PVDF vs PE ACP reveals significant differences in photo-chemical degradation rates. Fluoropolymer coatings absorb UV energy without breaking their internal molecular bonds. They routinely pass 5,000-hour QUV accelerated weathering tests with negligible changes in appearance. They maintain batch-to-batch color consistency over decades. This stability proves essential for phased construction projects where new panels must perfectly match existing installations.
Standard synthetic polymer coatings degrade noticeably under continuous solar exposure. The UV photons break the polymer chains, releasing the embedded pigments. This process accelerates in regions with high UV indices. Color fading is measured using Delta E metrics. A Delta E shift greater than 3.0 becomes visible to the human eye. Fluoropolymers typically maintain a Delta E below 2.0 after ten years. Conversely, standard polymers exhibit a Delta E shift of 5.0 or higher within just three to five years outdoors.
Gloss retention follows a similar degradation curve. As the polymer matrix erodes, the surface becomes microscopically rough. This roughness scatters light, causing the panel to look dull. Fluoropolymers retain over 80% of their original gloss after a decade of exterior exposure. Standard polymers often lose more than 50% of their shine within the first few years. The resulting chalky residue requires aggressive chemical cleaning to temporarily restore the appearance.

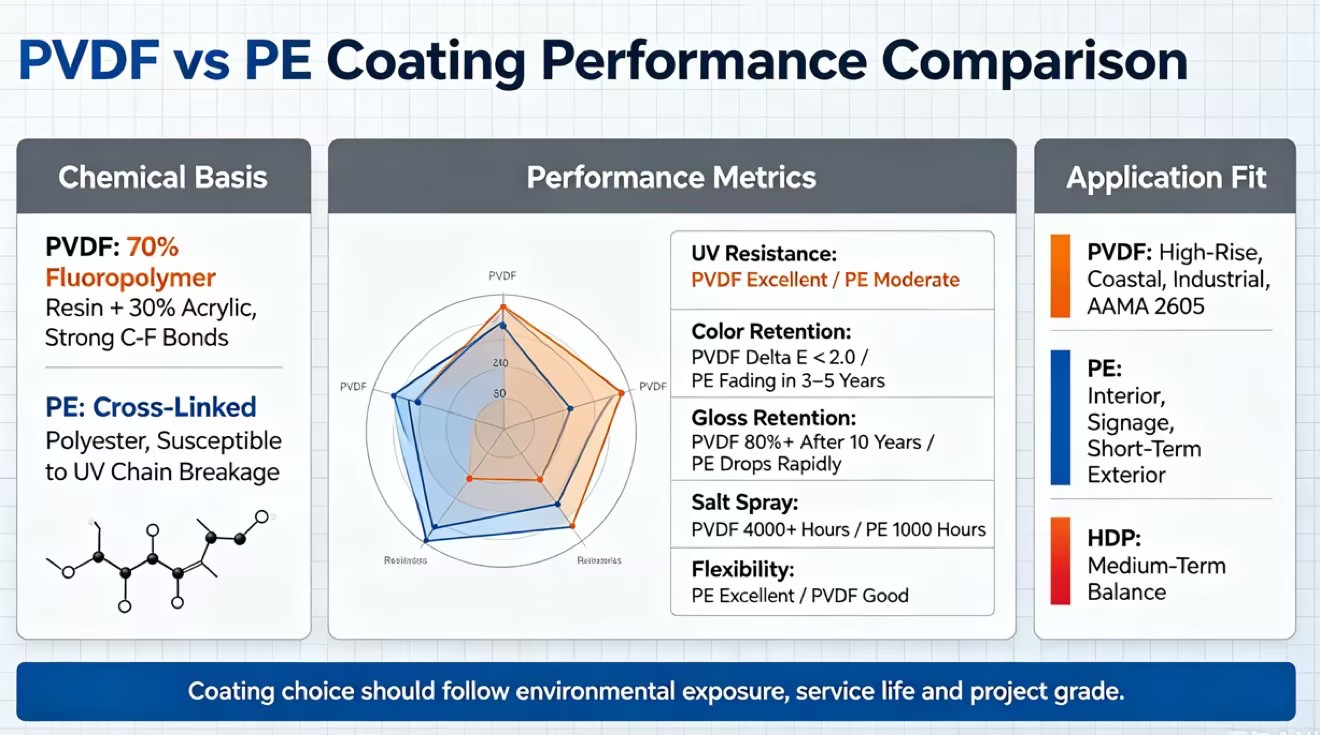

Performance Metric | PVDF Coating | PE Coating | Test Standard Reference |
|---|---|---|---|
Resin Composition | 70% Fluoropolymer / 30% Acrylic | Cross-linked Polyester | Industry Standard Specification |
UV Resistance & Color Retention | Excellent (Delta E < 2.0 over 10 years) | Moderate (Visible fading in 3-5 years) | ASTM D2244 |
Chalking Resistance | Excellent (Rating 8+ after 10 years) | Poor to Moderate outdoors | ASTM D4214 |
Gloss Range | Low to Medium (20 - 40 GU) | Medium to Ultra-High (30 - 90 GU) | ASTM D523 |
Flexibility (T-Bend) | Good (Typically 1T to 2T) | Excellent (0T to 1T) | ASTM D4145 |
Salt Spray Resistance | Superior (4000+ hours no blistering) | Moderate (1000 hours) | ASTM B117 |
PVDF coatings provide strong resistance to UV exposure, pollution, moisture, and salt spray, making them suitable for exterior ACP in coastal, industrial, and other harsh environments. They also maintain good adhesion as panels expand and contract with temperature changes, helping reduce the risk of cracking, peeling, and corrosion over long-term outdoor use.
Both PE and PVDF coatings should maintain good adhesion during CNC routing, V-grooving, and folding. PE coatings generally offer greater flexibility for complex shapes, while PVDF coatings provide stronger surface hardness, weather resistance, and scratch resistance for exterior applications. Proper fabrication and adhesion testing, such as ASTM D3359 where applicable, can help verify coating performance and reduce the risk of cracking or peeling.
PVDF coated ACP is well suited for high-rise facades and other long-term exterior applications where UV exposure, salt spray, pollution, and changing weather conditions require strong durability. It provides good resistance to fading, chalking, and chemical exposure while helping maintain consistent color over time. For projects with specific performance requirements, the coating should also be selected and verified according to applicable standards such as AAMA 2605.
Interior cladding and partitions represent the ideal application for standard polymer coatings. Without exposure to ultraviolet radiation or harsh weather, these finishes last indefinitely indoors. They provide a smooth, durable surface for cleanrooms, hospital corridors, and corporate lobbies. The broad color palette allows interior designers to execute vibrant, highly customized visual concepts. You can specify exact Pantone matches for interior accent walls without the chemical limitations associated with exterior-grade resins.
Retail signage and exhibition displays operate on shorter lifecycles. Corporate branding frequently updates every five to seven years. Specifying a 20-year exterior coating for a temporary retail facade represents poor resource allocation. Standard polymer finishes provide excellent initial aesthetics and formability for these short-term exterior applications. They allow for intricate routing and folding required in complex signage fabrication. Fabricators easily manipulate these panels into curved pylons and illuminated channel letter backings.
Applications demanding ultra-high gloss finishes must utilize standard polymer or specialized acrylic coatings. The chemical nature of fluoropolymer resin limits its maximum gloss level. It naturally cures to a matte or satin finish. When an architect specifies a mirror-like, high-gloss solid color for a specific design element, standard polymer coatings become the necessary technical choice. They deliver the required reflectivity while maintaining excellent surface smoothness. Automotive showrooms and high-end retail storefronts frequently utilize these high-gloss panels for visual impact.
Processing composite panels introduces mechanical risks to the surface finish. CNC routing generates sharp aluminum chips that can scratch the paint film. Fabricators must maintain proper tooling speeds and utilize appropriate cutting fluids. Dull router bits create excessive heat, which scorches the coating edges. Maintaining a temperature-controlled fabrication environment prevents the aluminum skins from expanding unpredictably during precision cutting. Operators must follow specific machining parameters to protect the finish:
Maintain spindle speeds between 18,000 and 24,000 RPM for clean cuts.
Set feed rates between 4 and 6 meters per minute to prevent heat buildup.
Utilize single-flute upcut router bits specifically designed for aluminum composite materials.
Implement automated vacuum extraction to remove abrasive aluminum chips immediately from the cutting path.
Protective films shield the coating during transport and fabrication. However, these films introduce their own risks. The adhesive backing reacts to ultraviolet light and heat. If panels remain stored outdoors with the film attached, the adhesive bakes into the paint surface. This causes permanent staining and makes film removal nearly impossible. Installers must remove all protective films within 45 days of exterior installation to prevent adhesive transfer. You must store uninstalled panels indoors, away from direct sunlight and moisture.
Handling large panels on active construction sites requires strict protocols. Workers must never drag panels across one another. Despite the impact resistance of the finish, sharp corners easily gouge the surface layer. Proper staging involves vertical racking with protective foam separators. Mitigating these handling risks ensures the panels arrive on the wall with their factory-applied finish completely intact. Site supervisors must train installation crews on proper lifting techniques using suction cups rather than bare hands.
Verifying delivered materials ensures the project meets specified engineering standards. Inspectors must measure the dry film thickness using calibrated digital gauges. Testing follows ASTM D7091 protocols. Premium fluoropolymer systems typically require a total thickness of 25 to 35 microns across multiple coats. Standard polymer systems usually measure between 16 and 20 microns. Panels failing to meet these micron thresholds will suffer premature weathering. Field inspectors use electromagnetic induction tools to verify these measurements on site.
Specifiers comparing PVDF vs PE ACP must demand third-party laboratory test reports from the panel manufacturer. These reports must map directly to recognized industry standards. For interior or short-term applications, verify compliance with AAMA 2603. For high-performance exterior facades, demand proof of AAMA 2605 compliance. Relying solely on manufacturer marketing literature introduces significant risk. Independent verification guarantees the chemical composition matches the project requirements. You must keep these certificates on file for building code compliance audits.
Warranty structures require careful legal review. Premium coatings generally offer 15 to 20-year performance warranties. Standard coatings offer 5 to 10 years. However, specifiers must scrutinize the hidden clauses. Many warranties become void if the installation occurs within a specific distance from a saltwater coast. Others require documented annual cleaning regimens using specific chemical agents. Understanding these environmental exposure limitations prevents unexpected liability during a premature coating failure. Always request the full warranty document before approving the final material submittal.
Order physical coated samples of both finishes to evaluate gloss levels and color accuracy under actual site lighting conditions.
Measure the dry film thickness of delivered panels using a calibrated digital gauge to ensure compliance with specified micron levels.
Demand third-party laboratory testing certificates verifying compliance with AAMA 2605 for any permanent exterior architectural facade.
Establish a strict site protocol for the removal of protective films within 45 days of installation to prevent UV-baked adhesive transfer.
Review the manufacturer's warranty documents specifically looking for exclusion clauses related to coastal proximity or industrial pollution.
A: Yes, but only for short-term projects or installations in very mild climates. The ester bonds in the coating degrade rapidly under continuous UV exposure. This leads to visible chalking, color fading, and loss of shine within three to five years. It is strictly recommended for temporary retail facades or signage rather than permanent architectural cladding.
A: A high-quality 70% fluoropolymer coating routinely lasts 15 to 20 years or more in harsh exterior environments without significant color shifting. In contrast, standard synthetic polymer coatings typically show noticeable degradation outdoors within 5 to 10 years. Indoors, away from UV light, both coatings can last indefinitely.
A: It is difficult to distinguish them purely by eye, but gloss level provides a strong clue. Standard polymer finishes can achieve ultra-high gloss, mirror-like surfaces. Fluoropolymer finishes naturally cure to a lower gloss, matte, or satin appearance. Absolute certainty requires laboratory chemical testing or reviewing the manufacturer's technical data sheets.
A: Yes, High-Density Polyester (HDP) serves as an intermediate option. It utilizes advanced resin structures and UV inhibitors to provide better weatherability and color retention than standard formulations. While it does not match the extreme decades-long durability of a 70% fluoropolymer blend, it offers a reliable alternative for medium-term architectural projects.
A: Yes, they can be repainted, but it is a labor-intensive process. The faded surface requires aggressive mechanical abrasion and chemical cleaning to remove all chalking. A specialized bonding primer must be applied before the new topcoat. In many cases, replacing the degraded panels entirely proves more efficient than attempting field-applied repainting.
A: Both surfaces require regular cleaning to remove airborne dirt and pollutants. However, standard polymer finishes are more sensitive to harsh chemicals and abrasive brushes, which can easily scratch the softer surface. Fluoropolymers possess a denser, chemically inert surface that offers a passive self-cleaning effect during heavy rain and withstands stronger cleaning agents if necessary.
