Selecting the right infill panels for building envelopes represents a high-stakes engineering decision. Material failure directly compromises structural integrity, safety, and energy efficiency. Architects and facade engineers constantly balance stringent structural load requirements, strict fire safety codes, and aesthetic demands. You must achieve these performance metrics without adding excessive dead load to the building structure or complicating the installation process. Aluminum Composite Panels (ACP) offer a highly customizable, rigid, and lightweight solution for modern facades. Before specifying an ACP curtain wall, engineering teams need to evaluate core types, coating durability, reinforcement structures, and attachment methods. This guide explores the technical specifications, fire safety requirements, and material comparisons necessary for successful facade deployment.
Weight-to-Rigidity Ratio: ACP offers equivalent rigidity to solid aluminum at a fraction of the weight, significantly reducing structural dead loads.
Fire Code Compliance is Non-Negotiable: Specification must strictly differentiate between combustible Polyethylene (PE) cores and compliant Fire-Retardant (FR) or non-combustible (A2) cores based on local building heights and codes.
System Integration & Customization: Successful deployment depends heavily on the chosen attachment system, precise edge folds, and adherence to manufacturer installation procedures to accommodate thermal expansion and wind loads.
Cost Efficiency: While initial material costs are lower than solid metal alternatives, total project viability relies on efficient fabrication, minimizing waste during panel routing, and selecting the right material for specific facade zones.
Table of Contents

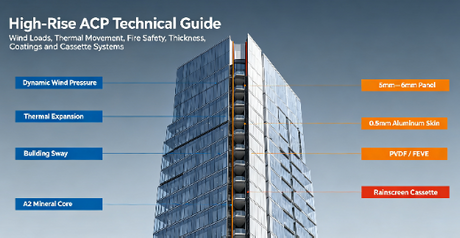

Infill panels in high-rise applications must withstand extreme environmental forces. The baseline requirements dictate that panels resist both positive and negative wind pressures without permanent deformation or fastener pull-out. Building aerodynamics create immense suction forces at the corners and rooflines of high-rise structures. The composite structure features two aluminum sheets bonded to a central core under continuous high pressure and temperature. This configuration operates on the I-beam principle. The aluminum skins act as the flanges, absorbing tension and compression, while the core acts as the web, resisting shear loads. This provides exceptional bending strength and dimensional stability compared to single-skin metals.
When designing an ACP curtain wall, oversized panels require engineered reinforcement structures. You must install stiffeners on the unexposed face to prevent deflection. Fabricators typically bond these aluminum extrusions to the back of the panel using high-strength structural silicone or specialized VHB (Very High Bond) architectural tapes. Field application requires cleaning the rear skin with isopropyl alcohol, applying a primer, setting the tape, and running a bead of structural silicone along the stiffener edges. This reinforcement maintains structural integrity under high wind loads, prevents panel fatigue, and eliminates the risk of failure during extreme weather events.
ACP is lightweight compared with many facade materials, helping reduce structural load while making handling and installation easier. Curtain wall systems must also allow for building movement caused by wind, temperature changes, and seismic activity. Sliding clips, slotted connections, and other flexible fixing methods allow the panels to move with the structure, helping reduce the risk of buckling, delamination, or damage around the fixing points.
ACP is commonly used in rainscreen and pressure-equalized facade systems to help manage rainwater and protect the building envelope. Properly designed joints, drainage channels, and weep holes allow water to drain away while reducing moisture buildup behind the panels. Although ACP is not the main insulation layer, correct installation helps protect the insulation and maintain the appearance and performance of the facade.

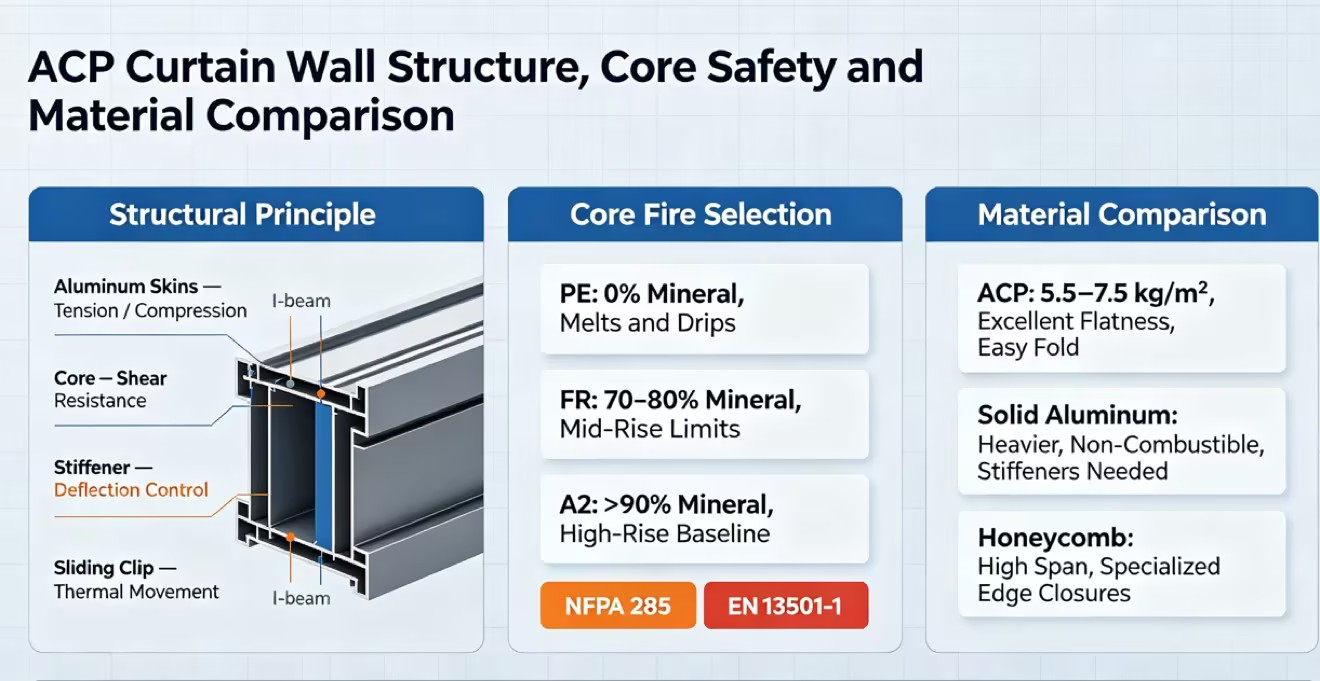

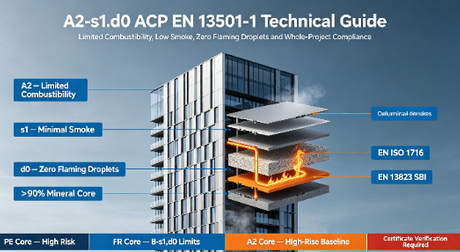

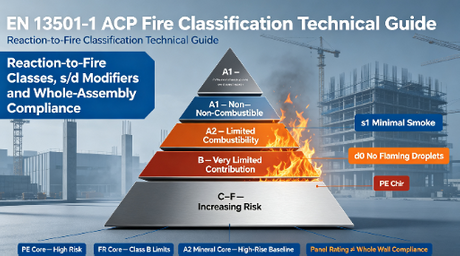

Fire safety dictates the selection of core materials in any facade project. The core composition determines how the panel reacts to high temperatures and direct flame exposure. Building codes strictly regulate these materials based on building height, occupancy type, and proximity to property lines.
PE (Polyethylene) Cores: Polyethylene cores present extreme fire risks. They melt, drip, and rapidly spread flames up the exterior of a building. Regulatory bodies globally have implemented severe limitations and outright bans on PE cores in mid-to-high-rise applications. You must avoid PE cores in any multi-story building envelope.
FR (Fire-Retardant) Cores: Fire-retardant cores consist of a mineral-filled composition, typically containing aluminum trihydroxide or magnesium hydroxide. They perform well under standard fire tests, including ASTM E283 and NFPA 285. When exposed to fire, these minerals release water vapor, which cools the panel, slows flame spread, and significantly reduces smoke generation.
A2 (Non-Combustible) Cores: A2 cores represent the industry standard for high-rise applications. They contain a highly concentrated mineral content, often exceeding 90%. This precise composition ensures compliance with stringent global fire codes like EN 13501-1. A2 cores do not contribute to fire propagation, making them essential for maximum life safety in skyscrapers and institutional buildings.
Core Type | Mineral Content | Fire Performance | Approved Applications |
|---|---|---|---|
PE (Polyethylene) | 0% | Highly Combustible. Melts and drips. | Single-story commercial, signage, interior fit-outs. |
FR (Fire-Retardant) | 70% - 80% | Resists ignition. Releases water vapor when heated. | Mid-rise buildings, subject to local NFPA 285 approvals. |
A2 (Non-Combustible) | > 90% | Does not contribute to fire spread. Minimal smoke. | High-rise towers, hospitals, schools, critical infrastructure. |

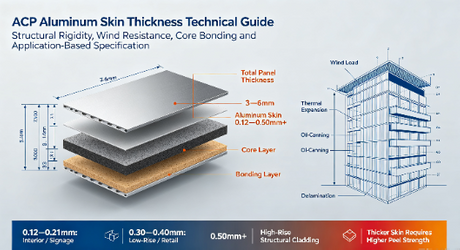

Aluminum skin thickness and alloy affect the strength, flatness, and durability of ACP. Exterior panels often use thicker aluminum skins to improve wind resistance and reduce oil-canning, while thinner skins are more suitable for less demanding applications. Common 3000-series alloys provide good formability for standard panels, while 5000-series alloys can offer higher strength and corrosion resistance for coastal or more demanding environments.

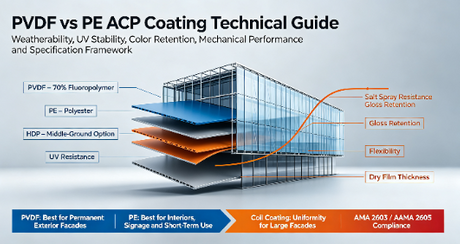

Surface coatings protect the aluminum from oxidation and provide the desired architectural finish. The coil coating process applies these finishes in a continuous, controlled factory environment. This involves cleaning the raw aluminum, applying a chemical pretreatment, rolling on a primer, applying the color coat, and baking it in high-temperature ovens.
PVDF Coatings: Polyvinylidene Fluoride (PVDF) systems, formulated with 70% fluoropolymer resin, offer superior UV resistance. The strong carbon-fluorine bonds prevent chalking and ensure color retention for over 20 years in harsh climates. PVDF remains the gold standard for architectural facades due to its proven track record in extreme sun exposure.
FEVE Coatings: Fluoroethylene Alkyl Vinyl Ether (FEVE) coatings provide higher gloss retention than PVDF. They cure at room temperature or elevated temperatures and are ideal for projects requiring vibrant, custom finishes, bright colors, or specific high-gloss aesthetics. FEVE allows for a broader color palette, including vivid reds and yellows that are difficult to achieve with PVDF.
Selecting between composite and solid metal depends heavily on the specific facade application, structural demands, and fabrication capabilities. Both materials have distinct advantages in the field.
Application Fit: Composite panels serve as the optimal choice for expansive, simple flat areas where building codes permit their use. Solid aluminum panels work better for highly customized, complex 3D shapes, perforated screens, or opaque facade zones requiring extensive welding and grinding.
Weight & Flatness: Composite materials offer superior flatness and lower weight. The bonded core prevents the skins from warping. Solid aluminum tends to oil-can at thinner gauges due to residual stresses from the rolling process. To achieve the same flatness as a 4mm composite panel, a solid aluminum sheet must be at least 3mm thick, significantly increasing the dead load on the building structure.
Fabrication: You can route and fold composite panels on-site or in-shop easily using standard woodworking or CNC equipment. Solid aluminum requires heavy press-braking, specialized cutting tools, and structural welding at the corners. Weld marks often require extensive grinding and finishing before painting, complicating the fabrication process.
Recyclability & Fire: Solid aluminum boasts 100% recyclability and inherent non-combustibility without relying on mineral cores. These traits present distinct advantages over composite materials in highly restrictive regulatory environments or projects with aggressive sustainability mandates.
Honeycomb panels represent the upper tier of metal facade materials, designed for specific structural challenges.
Rigidity & Span: Honeycomb panels offer even greater rigidity for ultra-large panel spans. Their cellular core, composed of hexagonal aluminum webs, provides exceptional strength-to-weight ratios. This allows for massive, continuous facade sections without intermediate mullions. A single honeycomb panel can span up to 5 meters without deflecting under wind load.
Application Efficiency: Composite panels provide a highly efficient choice for standard grid layouts and typical floor-to-floor spans. You should reserve honeycomb panels for specialized, oversized, high-impact facade zones, or massive canopy structures where standard composites cannot meet the extreme deflection limits. Honeycomb panels also require specialized edge closures, making field modifications nearly impossible.
Feature | ACP (Composite) | Solid Aluminum Veneer | Aluminum Honeycomb |
|---|---|---|---|
Weight (per sq.m) | 5.5 - 7.5 kg | 8.0 - 10.0 kg (at 3mm) | 4.5 - 6.5 kg |
Flatness | Excellent | Prone to oil-canning if thin | Superior (Best for large spans) |
Fabrication | Easy routing and folding | Requires heavy press-braking/welding | Requires specialized edge closures |
Fire Rating | Requires A2/FR core for high-rise | Inherently Non-Combustible | Inherently Non-Combustible |

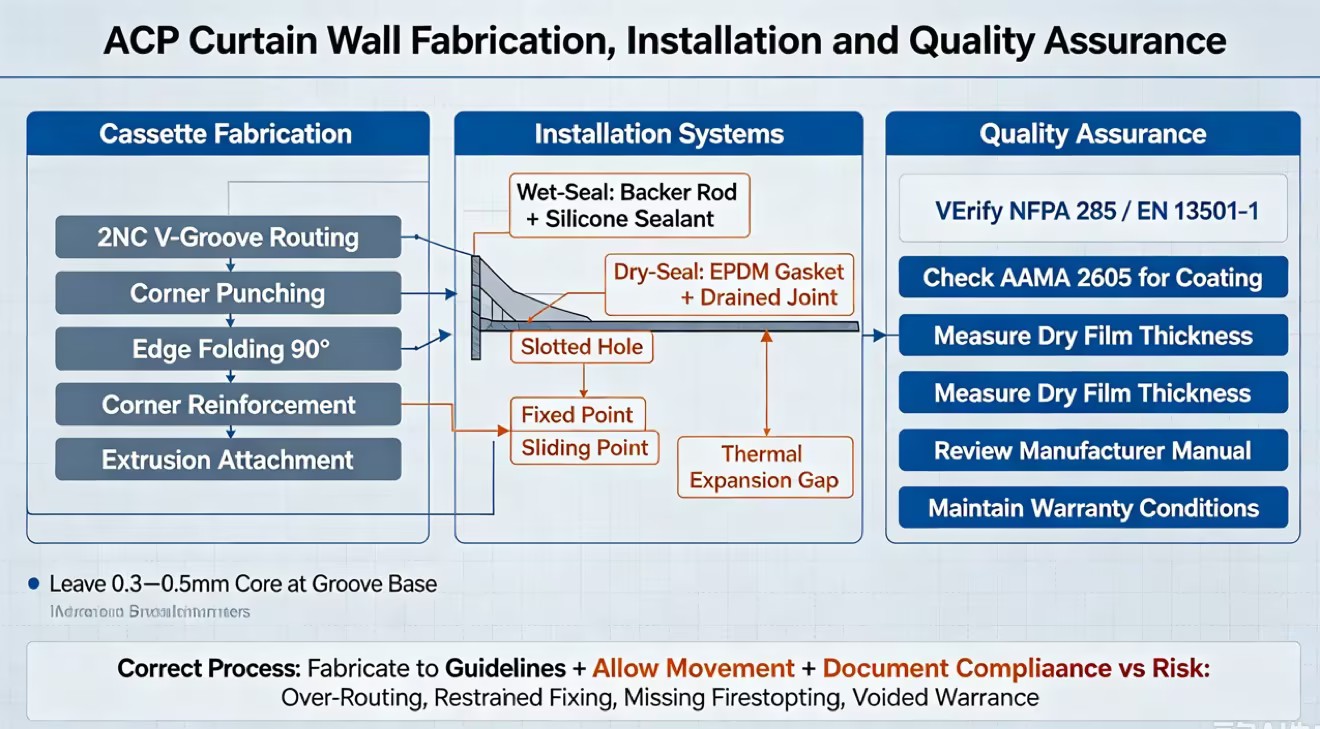

Fabricating cassettes requires precision and strict adherence to engineering guidelines. The "route and return" method creates the panel edges necessary for mounting. Precise edge folds are critical for weatherproofing and structural fit. The standard fabrication sequence involves several distinct steps to transform a flat sheet into a structural cassette.
CNC Routing: A specialized V-groove router bit cuts through the interior aluminum skin and partially into the core material along the fold lines.
Corner Punching: The corners of the panel are punched out to allow the edges to fold cleanly without overlapping material.
Edge Folding: The routed edges are folded up 90 degrees to create the return legs of the cassette.
Corner Reinforcement: Aluminum corner angles are riveted into the folded corners to lock the shape in place and provide structural rigidity.
Extrusion Attachment: Perimeter mounting extrusions are mechanically fastened to the return legs using stainless steel rivets.
Improper routing depth creates severe structural risks. Cutting too deep weakens the outer aluminum skin, leading to micro-fractures and eventual tearing under wind loads. Cutting too shallow stresses the core during folding, causing the panel edge to bow or delaminate. Fabricators must strictly follow manufacturer-approved fabrication guidelines, typically leaving 0.3mm to 0.5mm of core material at the base of the groove.
Mounting systems dictate how the facade manages water, wind, and building movement. The choice of system impacts the long-term maintenance schedule of the building envelope.
Wet-Seal Systems: These rely on caulked joints to create a completely sealed weather barrier. Installers place backer rods and apply architectural silicone sealant between the panel joints. While effective initially, they require meticulous sealant application and regular maintenance. UV exposure eventually degrades the silicone, leading to cohesive or adhesive failure. Dirt also tends to stick to the silicone, causing unsightly streaking down the facade.
Dry-Seal Systems: These utilize gasketed rainscreen principles. They allow a controlled amount of water to enter the joint but drain it out through engineered channels, equalizing pressure and preventing moisture accumulation. Dry-seal systems eliminate the aesthetic issue of dirt streaking commonly associated with silicone sealants. They rely on EPDM gaskets and interlocking aluminum extrusions to manage water infiltration.
Cassettes interface with curtain wall mullions using continuous perimeter extrusions or staggered clip systems. Installers mechanically fasten perimeter extrusions to the return legs of the cassette with stainless steel rivets. Executing the installation strictly according to the manufacturer's written instructions and approved shop drawings is critical. This exact compliance ensures system warranty validity and long-term structural performance.
ACP panels expand and contract as temperatures change, which can cause bowing, joint problems, or stress on fasteners if movement is restricted. Installation systems should therefore include suitable expansion gaps, slotted holes, or sliding connections that allow the panels to move with temperature changes while maintaining a stable facade.
Efficient panel sizing can reduce material waste and simplify ACP fabrication. Where possible, cassette dimensions should be planned around available sheet sizes while still meeting structural and design requirements. Standardized panel sizes can reduce off-cuts, improve CNC routing efficiency, simplify reinforcement and assembly, and minimize on-site modifications.
Procurement teams must demand comprehensive documentation before approving any facade material for site delivery. Mandatory certifications ensure life safety and performance compliance across the entire building envelope.
NFPA 285 Assembly Tests: Verifies the fire propagation characteristics of the entire exterior non-load-bearing wall assembly, not just the individual panel. This test evaluates how the panels, insulation, weather barriers, and framing interact during a fire.
AAMA 2605 Certifications: Ensures the architectural coating can withstand 4000 hours of salt spray and 10 years of South Florida UV exposure without significant color fade or chalking.
Independent Laboratory Reports: Verifies the core composition and mineral content of A2 or FR panels through third-party testing facilities.
Manufacturer Installation Manuals: Details the approved attachment methods, routing depths, and extrusion profiles required for structural integrity.
Reviewing these documents prevents the installation of non-compliant, counterfeit, or substandard materials that could compromise the building's safety.
ACP warranties may cover coating performance and panel delamination for a specified period, depending on the manufacturer and product. To maintain panel appearance and warranty coverage, facades should be cleaned regularly with mild detergents and non-abrasive tools, while harsh chemicals should be avoided. Sealant joints and gaskets should also be inspected periodically to identify potential weatherproofing problems.
Filter suppliers primarily by verifiable fire code compliance, specifically demanding NFPA 285 or EN 13501-1 certifications for the complete assembly.
Request structural testing data tailored to your specific geographic wind loads, building height, and seismic requirements.
Engage a qualified facade consultant early in the design phase to optimize panel sizing, routing details, and attachment methods.
Obtain physical material samples featuring the exact proposed coating, alloy temper, and gloss level for visual and structural approval.
Review full-scale mock-up testing protocols and manufacturer written instructions before finalizing material procurement and fabrication.
A: Yes, but strict fire code compliance is mandatory. You must specify panels with A2 (non-combustible) or high-grade FR (fire-retardant) cores. Polyethylene (PE) cores are highly combustible and are strictly banned in high-rise applications globally due to severe fire propagation risks.
A: The standard overall thickness for exterior facade applications is 4mm. This typically consists of a 3mm core sandwiched between two 0.5mm (0.020") aluminum skins. The 0.5mm skin thickness is critical to resist wind loads and prevent surface deformation.
A: Installers manage thermal expansion using slotted clips, sliding extrusions, and engineered joint sizing. These mechanisms allow the aluminum panels to expand and contract freely across the framing grid without bowing, stressing the fasteners, or compromising the weather seal.
A: Wet-seal systems use backer rods and architectural silicone caulking to create a completely sealed, watertight barrier at the panel joints. Dry-seal systems use gaskets and pressure-equalized rainscreen principles, allowing water to enter the joint but safely draining it away through engineered weep holes.
A: You prevent oil-canning by utilizing the inherent rigidity of the composite core, ensuring the exterior aluminum skin is at least 0.5mm thick, and applying rear reinforcement stiffeners for large spans. Additionally, panels must be installed using stress-free mounting clips that accommodate thermal movement.
A: The exterior aluminum skins are 100% recyclable and retain their structural properties after melting. However, recycling the entire composite panel requires specialized facilities to mechanically separate the aluminum from the mineral or polymer core material before processing.
