Global building codes shifted permanently following several high-profile cladding fires. Facade material selection now represents a primary liability and safety concern for every commercial construction project. Specifiers, architects, and facade engineers often struggle to differentiate between standard, fire-retardant, and non-combustible panels. This persistent confusion leads to compliance failures, failed site inspections, and catastrophic safety risks on mid-to-high-rise structures. A fire rated aluminum composite panel solves this problem by utilizing a specialized mineral core designed to resist ignition and prevent vertical flame spread. Modern building codes demand strict adherence to assembly testing, meaning the panel cannot be evaluated in isolation. Understanding the technical differences in core materials, mandatory testing standards, and evaluation frameworks ensures safe, compliant facade specification. Proper material selection protects building occupants and shields contractors from severe legal liability.
Core Composition is the Differentiator: A fire-rated aluminum composite panel relies on a mineral-filled thermoplastic core rather than a highly combustible 100% polyethylene (PE) core.
FR vs. A2 Grades: Fire-rated panels generally fall into two categories: FR (Fire Retardant, typically ~70% mineral content) and A2 (Non-combustible, typically ~90% mineral content).
Assembly Over Component: Passing code requires more than just a fire-rated panel; the entire wall assembly (including insulation, weather barriers, and framing) must pass rigorous tests like NFPA 285.
Verification is Mandatory: Counterfeit or mislabeled panels present a severe risk; specifiers must demand third-party testing certificates and maintain a strict chain of custody.
Table of Contents
An Aluminum Composite Material (ACM) consists of two thin aluminum sheets bonded to a central core under continuous heat and pressure during a co-extrusion process. This sandwich panel construction provides exceptional flatness, rigidity, and low weight compared to solid aluminum sheets. The core material strictly dictates the fire performance of the entire panel. When exposed to extreme heat, the exterior aluminum skins eventually yield and melt. The underlying core then faces direct thermal attack. If that core consists of combustible materials, the facade immediately becomes a fuel source, accelerating fire spread across the building envelope.
While the internal core serves as the primary fire barrier, the aluminum facings act as the first line of defense. Architectural grade panels utilize a 0.5mm (0.020-inch) aluminum skin thickness. This specific thickness delays initial core exposure to direct flame. Thinner skins, often found in signage or interior grades, warp and breach rapidly under fire conditions. A robust 0.5mm skin maintains structural integrity longer, providing vital minutes for building occupants to evacuate before the core material must engage its fire-retardant properties. The aluminum alloy itself, typically 3003 or 5005 series, offers specific tensile strength that resists buckling under thermal expansion.
Manufacturers engineer fire-resistant cores using a precise blend of polymer binders and inorganic minerals. Aluminum trihydroxide (ATH) and magnesium hydroxide (MDH) serve as the primary active ingredients. These minerals provide an inert thermal barrier through a specific chemical reaction rather than just acting as physical filler. When exposed to high heat, the core undergoes a sequence of protective phases:
Thermal Absorption: As temperatures reach 220°C, the ATH compounds begin an endothermic reaction, actively absorbing massive amounts of heat energy from the surrounding fire.
Vapor Release: The chemical breakdown of the minerals releases bound water molecules as vapor. This moisture actively cools the panel structure and dilutes combustible gases in the immediate vicinity.
Char Formation: The remaining mineral content oxidizes, forming a rigid, ceramic-like crust. This char layer insulates the deeper, unburned portions of the core from direct flame exposure.
Smoke Suppression: The lack of burning polymer prevents the formation of thick, toxic black smoke, maintaining visibility for emergency responders.
Legacy Polyethylene (PE) cores consist of 100% combustible plastic. Under fire conditions, PE cores melt rapidly, ignite, and produce flaming droplets. These droplets ignite materials below, while the burning core accelerates fire vertically up the building exterior. Because of this catastrophic failure mode, building authorities have rendered PE panels obsolete for multi-story applications. Modern jurisdictions strictly prohibit their use in mid-to-high-rise construction. Fire-rated cores eliminate this risk by replacing the bulk of the combustible plastic with non-combustible mineral compounds, drastically lowering the calorific value of the panel.

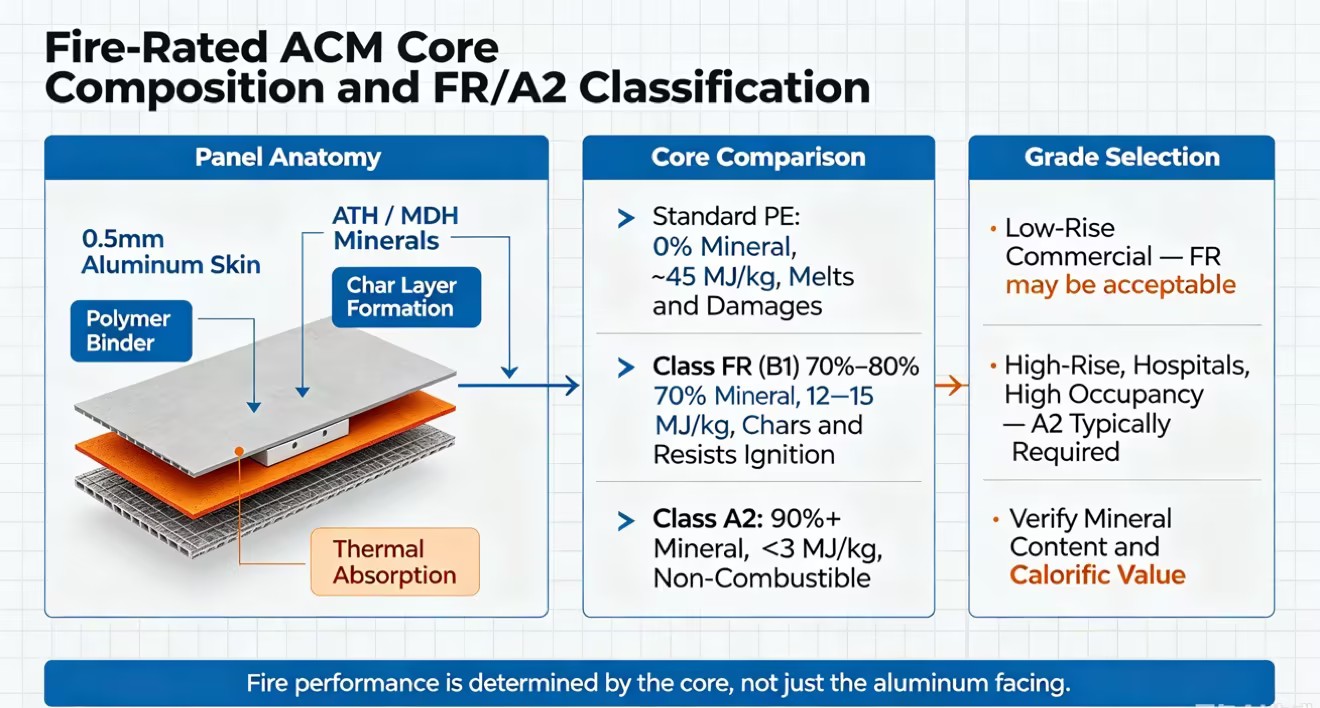

Core Type | Mineral Content | Calorific Value (Approx) | Fire Behavior | Primary Application |
|---|---|---|---|---|
Standard PE | 0% | 45 MJ/kg | Melts, drips, ignites rapidly | Single-story, signage (where permitted) |
Class FR (B1) | 70% - 80% | 12 - 15 MJ/kg | Chars, resists ignition, no droplets | Low-rise commercial, specific architectural features |
Class A2 | 90%+ | < 3 MJ/kg | Non-combustible, zero fuel contribution | High-rise, hospitals, high-occupancy structures |
The industry classifies standard fire-retardant panels under the FR or Class B1 designation. These panels feature a mineral-to-polymer ratio of roughly 70/30. The 70% mineral content allows the panel to resist ignition and effectively slow flame spread. They still contain approximately 30% combustible polyethylene binder, which provides flexibility during fabrication. FR panels perform exceptionally well in specific use cases. Architects frequently specify them for low-rise commercial buildings, retail storefronts, and architectural canopies where strict non-combustible codes do not apply. They offer a practical balance of fire safety, lighter weight, and excellent routing capabilities.
Class A2 panels represent the highest tier of fire safety for composite materials. These cores contain 90% or more inorganic minerals, leaving less than 10% polymer binder to hold the panel together. Building codes mandate A2 classifications for high-rise buildings, hospitals, schools, and high-occupancy structures. The technical distinction between "fire-retardant" and "non-combustible" dictates specification. While FR panels slow a fire, A2 panels contribute virtually zero fuel to a fire event. They meet the stringent requirements of international non-combustibility standards, ensuring maximum life safety in complex, high-risk building environments where evacuation times are extended.

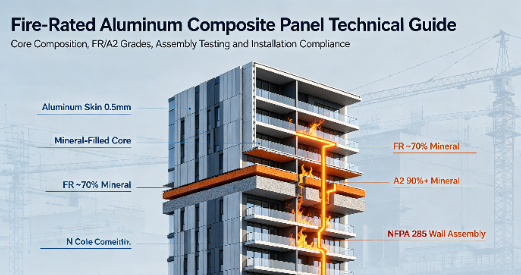

NFPA 285 stands as the most critical fire testing standard in North America. This test evaluates the fire propagation characteristics of exterior non-load-bearing wall assemblies. NFPA 285 does not test the individual panel in isolation. It tests the entire wall assembly as a complete system. The test utilizes a two-story mock-up structure with a window opening. Technicians ignite gas burners inside the room and at the window header to simulate a flashover event. To pass, the assembly must prevent flames from spreading vertically or horizontally beyond specific limits, and internal thermocouples must not exceed designated temperature thresholds.
A compliant NFPA 285 wall assembly typically requires specific, tested components working together:
Interior gypsum wallboard (minimum 5/8" Type X).
Steel stud framing (minimum 18 gauge, spaced appropriately).
Exterior sheathing (glass-mat faced gypsum).
A fire-tested weather-resistive barrier (WRB) applied to the sheathing.
Continuous mineral wool insulation (non-combustible).
An engineered aluminum extrusion framing system.
The specified fire-rated aluminum composite panel.
Laboratory surface burning tests evaluate how materials react to direct flame exposure in a controlled environment. ASTM E84 utilizes a 24-foot Steiner Tunnel to measure two key metrics: Flame Spread Index (FSI) and Smoke Developed Index (SDI). High-quality fire-rated panels achieve a Class A rating under ASTM E84, meaning they exhibit minimal flame spread and smoke generation. In Europe, the EN 13501-1 standard dictates compliance. The Euroclass system evaluates combustibility, smoke production, and flaming droplets. A premium A2 panel achieves a rating of A2-s1, d0. This translates directly to non-combustible (A2), minimal smoke production (s1), and zero flaming droplets (d0).
The International Building Code (IBC) provides the legal framework for panel selection in the United States. The IBC dictates specific cladding requirements based on building height, occupancy type, and fire separation distance. For buildings above 40 feet, the code introduces strict fire performance requirements for exterior walls. For structures exceeding 75 feet, the rules become universally rigorous, mandating assemblies that pass NFPA 285. The code also accounts for proximity to property lines. Buildings situated close to adjacent structures require higher fire resistance ratings to prevent fire jumping across narrow urban alleys.
Specifiers must navigate a crowded market of facade materials. Rely on established, tier-1 product lines with proven track records in commercial construction. Globally recognized brands maintain comprehensive libraries of successful NFPA 285 assembly tests covering various insulation and WRB combinations. These manufacturers provide detailed engineering data, installation guidelines, and robust warranties. Avoid risking compliance on unverified generic imports. Counterfeit panels frequently enter the market with fraudulent testing certificates. Partnering with reputable manufacturers ensures you receive authentic materials backed by legitimate, third-party laboratory testing and continuous factory audits.
The mineral content directly impacts the physical weight of the panel, which alters structural calculations and site logistics. Standard PE panels are exceptionally light, weighing around 5.5 kg/m². FR panels weigh slightly more, typically around 7.5 kg/m², due to the 70% mineral core. A2 panels, with their 90%+ mineral density, represent the heaviest composite option at approximately 8.5 kg/m². Engineers must account for this increased dead load during structural calculations. The heavier panels require robust extrusion systems, tighter clip spacing, and stronger fasteners. Installation crews must adjust their material handling protocols on-site, utilizing vacuum lifters or two-man teams to position the heavier A2 panels accurately.
Fabricators must adjust their techniques based on the core grade. PE cores offer maximum flexibility, easily accommodating complex curves and sharp folds at high routing speeds. Highly mineralized A2 cores behave entirely differently. The dense mineral composition makes the core brittle. Standard woodworking router bits will shatter the core and ruin the panel. Fabricators must utilize specific Polycrystalline Diamond (PCD) V-groove router bits. Feed speeds on the CNC machine must drop significantly to prevent fracturing the fold line. While A2 panels achieve stunning architectural shapes, they demand specialized fabrication expertise, precise depth control, and slower processing times compared to standard composite panels.
While the core handles the fire rating, the exterior finish dictates long-term durability and visual appeal. Architectural panels utilize high-performance resin coatings, primarily PVDF (Polyvinylidene Fluoride) or FEVE (Fluoroethylene Vinyl Ether). These coatings must withstand severe UV degradation, extreme weather events, and constant thermal stress. PVDF offers exceptional color retention and chalk resistance, typically applied in two or three-coat systems baked onto the aluminum skin. FEVE provides higher gloss options and excellent weatherability. Specifiers must ensure the chosen coating system protects the aluminum skin from oxidation, thereby maintaining the structural integrity of the entire fire-rated assembly over its decades-long lifespan.
A premium fire-rated panel can still fail catastrophically if installed on a substandard framing system. Most architectural facades utilize rainscreen principles, creating a ventilated air cavity behind the cladding to manage moisture. During a fire, this cavity acts as a flue, creating a chimney effect that draws flames upward at high velocity. To mitigate this risk, installers must integrate proper firestopping and intumescent cavity barriers at floor lines and around openings. These barriers expand up to ten times their original size under heat, sealing the air cavity and choking off the oxygen supply to the fire. The aluminum framing system must also accommodate thermal expansion without buckling, which would otherwise dislodge the panels and expose the cavity.
Fabrication methods expose the internal core to environmental elements. The rout and return method folds the aluminum skin to create a mounting cassette, leaving the corners potentially vulnerable to water ingress. Flat sheet installations leave the panel edges completely exposed along the joint lines. Moisture ingress degrades the core binder over time. Freeze-thaw cycles exacerbate this damage, causing the trapped water to expand and force delamination between the aluminum skin and the core. Installers must utilize approved, compatible silicone edge sealants and proper weather-resistive barriers to protect the core from moisture, ensuring the panel maintains its structural and fire-resistant properties.
Installation Defect | Fire Safety Impact | Field Mitigation Strategy |
|---|---|---|
Missing Cavity Barriers | Allows chimney effect to accelerate vertical flame spread | Install intumescent barriers at all floor slabs and fire compartments |
Rigid Panel Fixing | Thermal expansion causes panels to buckle and pop off framing | Use engineered sliding clips and fixed points to allow movement |
Unsealed Panel Edges | Moisture causes delamination, weakening the skin during a fire | Apply compatible silicone sealants to all exposed core edges |
Combustible Insulation | Adds massive fuel load directly behind the fire-rated panel | Specify and install only non-combustible mineral wool insulation |
Value engineering often targets facade materials to reduce project expenditures. Substituting specified panels for unverified alternatives introduces severe liability. Counterfeit materials frequently mimic the appearance of premium brands but utilize combustible PE cores hidden beneath the aluminum skin. To mitigate this risk, specifiers and contractors must maintain a strict chain of custody. Verify product authenticity by checking UL directories or equivalent third-party certification databases. Demand batch-specific test reports directly from the manufacturer. Inspect the physical panels upon delivery; legitimate fire-rated panels feature printed stamps on the backer sheet detailing the brand, core grade, production date, and certification marks.
Request complete Technical Data Sheets (TDS) and third-party testing certificates directly from the panel manufacturer before approving any submittals.
Consult with a qualified facade engineer to review your specific wall assembly design and ensure compatibility with local fire codes.
Require physical mock-up testing for any custom wall assemblies that deviate from standard manufacturer details.
Implement a strict material inspection protocol upon delivery to verify core stamps and prevent counterfeit substitutions on the job site.
A: No building material is entirely fireproof. Aluminum composite panels are classified as fire-rated or fire-resistant. The exterior aluminum skins will not burn, but they melt at extreme temperatures. The internal core material dictates the fire rating. Specialized mineral cores resist ignition and slow flame spread, but they are not immune to fire under sustained, extreme conditions.
A: The difference lies in the mineral content. FR (Fire Retardant) panels contain approximately 70% inorganic minerals and 30% combustible polymer binder. They slow flame spread effectively. A2 panels contain 90% or more minerals, making them strictly non-combustible. Building codes require A2 panels for high-rise and high-risk structures.
A: No. You cannot retroactively treat, coat, or upgrade existing combustible PE panels to achieve a fire rating. The fire resistance relies entirely on the internal core composition. To remediate a non-compliant building, crews must completely remove the existing PE panels and install new fire-rated panels.
A: Yes, the installation method is critical. Fire codes evaluate the entire wall assembly, not just the panel. Rainscreen systems create air cavities that accelerate fire via a chimney effect. Installers must use proper intumescent cavity barriers and firestopping materials within the framing system to maintain the assembly's fire rating.
A: Weather-resistive barriers (WRBs) sit behind the panel and framing system. Because WRBs are often made of polymeric materials, they can contribute fuel to a fire. A compliant facade requires the specific WRB to be tested alongside the fire-rated panel and insulation within the NFPA 285 wall assembly test.
