Exact material specification in architectural cladding and signage plays a critical role in project success. Dimensional inaccuracies routinely lead to budget overruns, installation delays, and structural vulnerabilities on the job site. Specifying incorrect dimensions or thicknesses introduces severe risks that compromise the entire building envelope. You face massive material wastage, panel distortion known as oil canning, catastrophic failure under high wind loads, and severe fabrication limitations when bending or routing the material.
This guide delivers an evidence-based framework for evaluating standard versus custom ACP sheet sizes. We help you select appropriate thicknesses based on specific application demands and local building codes. You will learn how to optimize material yield, reduce scrap rates, and ensure long-term structural integrity across your commercial facade projects.
Standard Dimensions: The global baseline for ACP sheet sizes is 1220mm x 2440mm (4 ft x 8 ft), though modular widths (1200mm, 1220mm, 1250mm, 1500mm) and lengths up to 6000mm are widely available to meet regional and project-specific requirements.
Thickness-to-Application Mapping: 2mm to 3mm panels are strictly for interior use or signage, while 4mm is the baseline for exterior facades. 6mm panels are required for high-wind-load or heavy-duty environments.
Skin vs. Core Ratio: Overall panel thickness is only part of the equation; the thickness of the aluminum skin (e.g., 0.25mm vs. 0.50mm) dictates routing capabilities and structural integrity.
Yield Optimization: Aligning architectural grid designs with standard sheet dimensions drastically reduces off-cut waste and lowers total project costs.
Table of Contents
Manufacturers produce standard metric and imperial widths to accommodate various framing systems and architectural grids. You will commonly find widths of 1200mm, 1220mm, 1250mm, and 1500mm stocked at local distributors. Specialized production lines can also manufacture widths up to 2000mm for massive facade elements, though these require special transport logistics. Standard lengths offer even more variety to match floor-to-floor spans. You can source panels at 2400mm, 2440mm, 3000mm, 3050mm, 3060mm, 3200mm, and 3600mm. Maximum lengths reach up to 6000mm. Logistics, handling equipment on site, and thermal expansion limits constrain anything longer.
Commercial configurations vary heavily by region and local construction practices. Common pairings include 1200mm x 2400mm and 1220mm x 2440mm for standard low-rise work. Larger formats like 1200mm x 3060mm, 1220mm x 3600mm, and 1500mm x 3050mm serve expansive exterior applications where minimizing visible joints is a priority. Selecting the right configuration depends entirely on your grid layout and the capacity of your fabrication equipment.
Mapping building facade grids to standard dimensions requires precision and an understanding of cassette folding. You must align panel joints with available sheet formats while accounting for the return legs of the panel. This alignment minimizes off-cuts and maximizes yield per sheet.
Determine the finished visual face size of the required panel.
Add the necessary return leg dimensions (typically 20mm to 25mm per side) for routing and folding.
Add the required routing tolerance and perimeter flange for rivet or screw attachment.
Compare this total flat pattern size against standard sheet dimensions to find the most efficient fit.
Adjust the architectural joint lines by 50mm to 100mm if it allows two panels to be cut from a single sheet instead of one.
Ordering custom lengths becomes economical when off-cut waste exceeds standard overage allowances, typically around the 15% mark. You must evaluate the financial threshold carefully before committing to a custom run. Custom mill runs require minimum order quantities, often starting at 1000 square meters per color and width. They also introduce extended lead times for coil coating and continuous lamination. Standard sheets ship immediately from inventory, keeping fast-track projects on schedule. Custom sizes demand strict production scheduling and upfront planning. Balance the waste reduction against project timeline constraints and site storage capabilities.
Thin panels exhibit low rigidity and lack the structural mass required for exterior wind loads. They remain highly susceptible to warping under thermal stress and direct sunlight. You must restrict 2mm and 3mm panels to controlled indoor environments. Appropriate use cases include interior wall linings, cleanroom partition panels, and false ceilings. They also excel in point-of-purchase displays, exhibition stands, and short-term directional signage. Never specify these thicknesses for exterior building envelopes, as they will inevitably fail under negative wind pressure.
Commercial facades demand a 4mm baseline specification. This thickness provides the optimal balance between weight, rigidity, and structural performance. A 4mm ACP sheet resists wind deflection effectively when supported by a properly engineered aluminum sub-frame. It allows for crisp V-groove routing and folding without compromising the core material. Most architectural systems, including rainscreens and wet-seal barrier walls, default to 4mm for standard exterior applications.
Extreme engineering requirements necessitate 6mm panels. High-rise buildings face severe wind pressures at elevated floors. Hurricane zones require maximum impact resistance against flying debris. Large unsupported panel spans demand superior rigidity to maintain a flat aesthetic. A 6mm panel delivers the necessary structural integrity for these demanding environments. It prevents dangerous deflection under heavy loads and ensures the panel does not pull away from its perimeter fasteners.

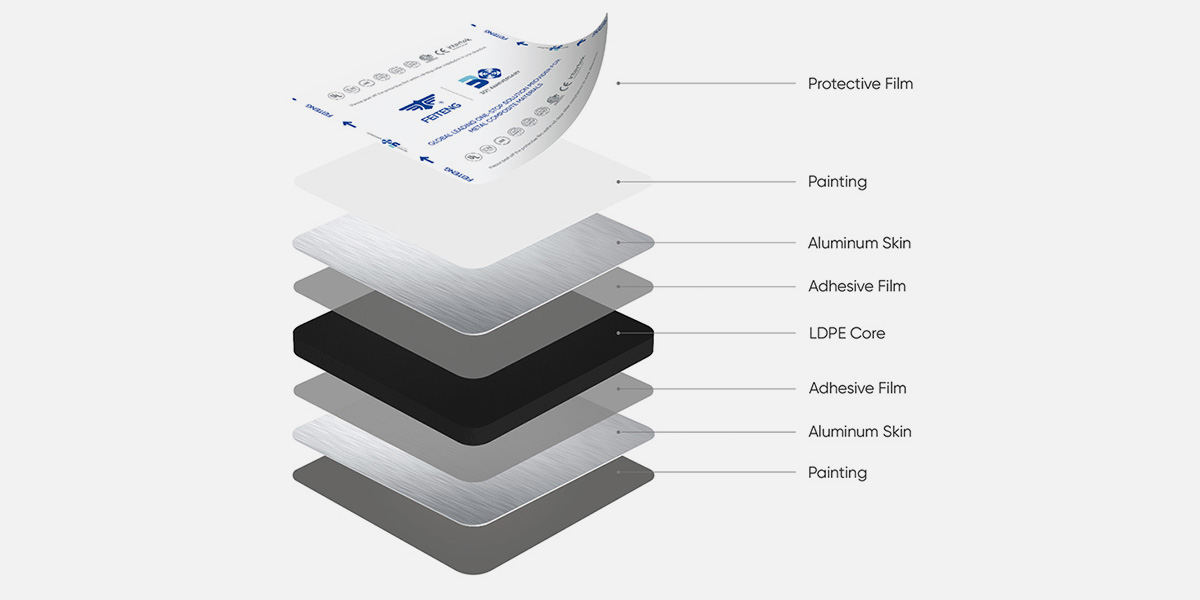

Total panel thickness only tells half the story. You must evaluate the top and bottom aluminum coils independently. Skin thicknesses range from 0.12mm to 0.50mm. A 4mm panel featuring a 0.50mm skin drastically outperforms a 4mm panel with a 0.25mm skin. The thicker skin ensures flawless routing without cracking the face. It prevents tearing during the folding process. It also provides superior impact resistance against hail, maintenance equipment, and general wear.
Total Thickness | Recommended Skin Gauge | Primary Application | Rigidity Level | Average Weight (kg/m2) |
|---|---|---|---|---|
3mm | 0.21mm - 0.30mm | Interior, Signage | Low | 4.5 |
4mm | 0.40mm - 0.50mm | Exterior Cladding | High | 5.5 |
6mm | 0.50mm | High-Rise, High Wind | Maximum | 7.3 |
Structural engineers must correlate sheet dimensions with local wind load codes. Unsupported span widths dictate the required panel strength and stiffener placement. Larger panel sizes require thicker sheets to maintain a flat surface. Alternatively, they require reinforced substructures and extruded aluminum stiffeners adhered to the back of the panel to prevent deflection. Calculate the wind pressure for your specific building height, exposure category, and geographic location. Use these metrics to determine the maximum allowable span for your chosen thickness.
Thickness and skin gauge directly dictate the minimum bending radius and routing depth. Fabricating underspecified panels introduces severe risks on the shop floor. You may experience core cracking if the router bit penetrates too deeply. Skin delamination often occurs when routing panels with thin aluminum layers, as there is not enough metal to hold the fold. Always verify the manufacturer's fabrication guidelines. Ensure your chosen gauge supports the required cassette folds, curved column covers, and complex geometric shapes.
Thicker panels increase the dead load on your aluminum or steel substructure. You must analyze this impact during the engineering phase to ensure the building's primary structure can handle the cladding weight. A 3mm panel typically weighs around 4.5 kg per square meter. A 4mm panel weighs approximately 5.5 kg per square meter. A 6mm panel jumps to roughly 7.3 kg per square meter. Design your framing system, wall brackets, and anchors to support these specific weight metrics safely.
Oil canning manifests as visible waviness in the flat areas of a panel. It ruins the aesthetic intent of a facade, especially under direct sunlight or reflective finishes. You can mitigate this risk effectively through proper design. Avoid specifying overly large unsupported panel dimensions. Utilize structural silicone to attach aluminum stiffeners on the back of large cassettes. Ensure you specify a proper skin thickness. A 0.50mm skin resists oil canning much better than thinner alternatives because the thicker metal holds its tension.
Aluminum composite materials expand and contract significantly with temperature changes. You must account for the coefficient of thermal expansion in every joint detail. Larger sheet dimensions require wider sealant joints to absorb the movement. They also demand deeper extrusion engagements in dry-joint systems. These allowances accommodate movement without causing the panels to buckle, warp, or shear their fasteners. Calculate the expected thermal movement based on your local climate extremes and the panel's color, as dark panels absorb more heat.
Thickness alone does not guarantee fire safety. You must evaluate the core material in conjunction with panel dimensions. Standard polyethylene (PE) cores pose significant fire risks and are banned for high-rise use in most jurisdictions. Specify fire-retardant (FR) or A2 non-combustible cores to meet NFPA 285 or EN 13501-1 fire standards. Always verify local building codes with the authority having jurisdiction before finalizing your material specifications.
Selecting the right ACP sheet size and thickness is about more than meeting project specifications. A successful aluminum composite panel system depends on choosing the correct dimensions, aluminum skin thickness, and fabrication methods while considering wind loads, structural requirements, and long-term durability. Careful planning helps reduce material waste, improve installation efficiency, and ensure reliable building performance throughout the project lifecycle.
