Views: 0 Author: Site Editor Publish Time: 2026-07-24 Origin: Site
The structural integrity, safety, and longevity of modern facades and signage rely entirely on the precise material makeup of the chosen cladding. Specifying the wrong panel materials can lead to catastrophic fire safety failures, premature weathering, delamination, and costly building code violations. To mitigate risk and ensure project compliance, architects, builders, and procurement teams must understand the exact engineering behind these materials. This guide breaks down the technical specifications of aluminum composite panel composition, evaluating core types, alloy grades, and protective coatings to inform rigorous procurement decisions. We will examine the exact layers, adhesives, and manufacturing tolerances that dictate panel performance on the job site. You need to know how these components interact under wind load, thermal stress, and fire conditions to prevent structural failures.
An aluminum composite panel (ACP)—also referred to as Aluminum Composite Material (ACM)—is a highly engineered three-layer sandwich structure, combining two pre-painted rigid aluminum outer skins with a central, non-aluminum core material.
The core material dictates fire safety compliance; traditional Polyethylene (PE) cores are highly restricted in modern building codes, making Fire-Retardant (FR) mineral cores the standard for architectural applications.
Panel durability and weather resistance are determined by the exterior coating, with PVDF (Polyvinylidene Fluoride) offering superior UV and chemical resistance compared to standard polyester finishes.
Proper specification requires balancing weight-to-strength ratios, thermal expansion rates, and local fire code certifications against project budgets.
Table of Contents
The construction industry frequently uses the terms Aluminum Composite Panel and Aluminum Composite Material interchangeably. Both refer to the exact same product. Specification documents might use ACM when discussing the raw material properties in bulk coil form. They use ACP when referring to the finished, cut-to-size architectural units ready for installation on a facade. Understanding this terminology prevents confusion during the procurement and submittal processes. When you review shop drawings, the drafters will typically label the fabricated cassettes as ACP, while the structural engineering notes will reference the ACM yield strength.

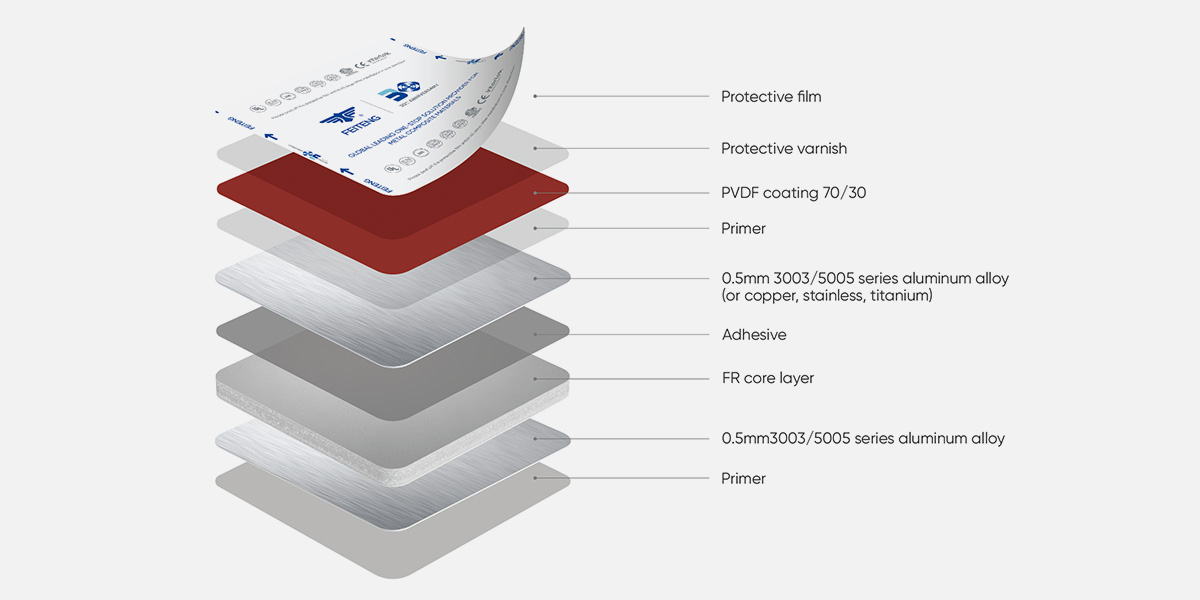

The fundamental design of an aluminum composite panel relies on a three-layer sandwich structure. This configuration delivers exceptional rigidity and lightweight strength compared to solid metal sheets of the same thickness. The outer aluminum skins provide tensile strength, impact resistance, and a weather barrier. The inner core provides volume, thermal insulation, and acoustic dampening. Together, they create a composite material that resists bending and buckling under heavy wind loads. A 4mm composite panel weighs roughly 5.5 kg/m², whereas a solid aluminum sheet of equivalent rigidity would weigh nearly twice as much.
Rigidity and Weight Comparison: Composite vs. Solid Aluminum | |||
Material Type | Thickness (mm) | Weight (kg/m²) | Relative Rigidity |
|---|---|---|---|
Composite Panel (FR Core) | 4.0 | 7.6 | High |
Solid Aluminum Sheet | 3.3 | 8.9 | Equivalent to 4mm ACP |
Composite Panel (PE Core) | 4.0 | 5.5 | High |
Solid Aluminum Sheet | 2.0 | 5.4 | Low (Prone to deflection) |
Manufacturers treat and paint the aluminum skins before permanently fusing them to the core. This coil-coating process ensures a uniform finish across massive production runs. The raw aluminum coil unwinds, passes through chemical cleaning baths to remove oxidation, receives a primer, and then gets coated with the final topcoat. Ovens bake the finish at high temperatures. This continuous process guarantees color consistency and superior adhesion compared to post-painting fabricated panels. Field painting a raw panel rarely achieves the same bond strength as factory coil coating.
The structural integrity of the panel depends entirely on the bonding process. Thermoplastic binders and macromolecular adhesive films sit between the aluminum skins and the inner core. During manufacturing, high heat and massive roller pressure activate these adhesives. They permanently fuse the disparate materials together. A failure in this adhesive layer results in delamination, rendering the panel structurally compromised and visually defective. Quality control labs test this bond using a drum peel test, measuring the force required to rip the aluminum skin away from the core.
Continuous lamination processes dictate the final quality of the panel. Precision rollers control panel flatness and thickness consistency. Strict manufacturing tolerances ensure the final product meets structural reliability standards. Variations in thickness can cause uneven joints during installation, making the reveal lines look sloppy. Poor tension control during lamination leads to surface waviness, commonly known as oil-canning. Oil-canning ruins the aesthetic of a flat facade, especially on high-gloss finishes where light reflection highlights every surface imperfection.
The central core separates the two aluminum skins, dramatically increasing the moment of inertia without adding significant weight. This non-aluminum center provides thermal insulation, dampens acoustics, and maintains panel flatness across large spans. The specific material used for this core defines the panel's fire performance and overall application suitability. You cannot determine the core type just by looking at the painted surface; you must inspect the cross-section or review the technical data sheets.
Traditional panels utilize a 100% low-density polyethylene (LDPE) thermoplastic core matrix. This material is incredibly lightweight, flexible, and easy to route. Fabricators prefer it because it extends the life of their CNC router bits. However, it carries severe limitations regarding combustibility. Under high heat, polyethylene melts, drips, and ignites, rapidly spreading fire up a building's exterior cavity. Due to these severe risks, modern building codes heavily restrict PE cores. They are now largely relegated to single-story structures, temporary installations, gas station canopies, and ground-level signage.
Architectural applications demand Fire-Retardant (FR) mineral cores. These cores consist of thermoplastic binders mixed heavily with non-combustible mineral fillers, such as aluminum trihydroxide (ATH) or magnesium hydroxide (MDH). When exposed to fire, these minerals undergo an endothermic reaction. They release water vapor, cooling the panel and starving the fire of oxygen. This composition delays flame spread and significantly reduces smoke generation.
The industry grades these cores based on their mineral content and fire performance:
Standard FR: Contains approximately 70% to 80% mineral filler. Meets basic commercial building codes for mid-rise structures and passes standard surface flammability tests.
A2 Grade: Contains over 90% mineral filler. Classified as nearly non-combustible. Required for high-rise buildings and critical infrastructure like hospitals and schools where evacuation times are extended.
For maximum fire safety and recyclability, some panels utilize a 100% aluminum core. These alternatives use either a corrugated aluminum sheet or an aluminum honeycomb structure sandwiched between the flat outer skins. They contain zero combustible materials, eliminating the fuel load entirely. While they offer unparalleled fire performance, they come with trade-offs. They carry higher upfront material costs. They also require different fabrication techniques, as standard rout-and-return folding methods used on solid cores do not work on hollow honeycomb structures.
The specific aluminum alloy used for the exterior skins dictates the panel's structural strength, formability, and corrosion resistance. Manufacturers typically utilize three main series of aluminum alloys depending on the intended application.
1100 Series: This is commercially pure aluminum. It is highly formable and easy to work with, making it ideal for complex curves and intricate folding. However, it has lower structural strength and yield limits. It is mostly common in signage, interior applications, or low-stress environments.
3003 Series: This alloy includes manganese. It provides moderate strength and excellent corrosion resistance. It stands as the standard architectural grade for most exterior cladding projects, offering a good balance between routing capability and wind load resistance.
5005 Series: This alloy includes magnesium. It offers higher tensile strength and superior performance in harsh environments. It is the preferred choice for marine environments, coastal buildings, and high-wind zones where panel deflection must be minimized.
Mechanical Properties of Common Aluminum Alloys Used in Cladding | |||
Alloy Series | Primary Alloying Element | Tensile Strength (MPa) | Yield Strength (MPa) |
|---|---|---|---|
1100-H14 | None (Pure) | 110 - 125 | 105 |
3003-H14 | Manganese | 145 - 160 | 125 |
5005-H34 | Magnesium | 155 - 175 | 135 |
Aluminum skin thickness typically ranges from 0.12mm to 0.50mm. The thickness directly influences the panel's wind load capacity and routing capabilities. A 0.50mm skin provides maximum rigidity, allowing for large panel spans without surface waviness. When fabricators rout a V-groove into the back of the panel to fold the edges, a 0.50mm skin leaves enough material to maintain a sharp, strong corner. Thinner skins, such as 0.20mm, are suitable only for flat, unrouted applications like sign boards. Using thin skins on large architectural facades inevitably leads to oil-canning, corner cracking, and structural failure under negative wind pressure.
Modern manufacturing often utilizes up to 85% recycled aluminum for the exterior skins. Sourcing recycled alloys reduces the environmental footprint of the material and lowers embodied carbon. This practice directly impacts LEED certification points for new construction projects. The recycling process does not degrade the structural performance or weather resistance of the aluminum, provided the alloy composition meets strict industry standards during the smelting process.
Fluoropolymer resins form the basis of PVDF finishes, commonly known by trade names like Kynar 500 or Hylar 5000. This coating represents the architectural standard for exterior cladding. PVDF offers superior color retention, exceptional UV resistance, and strong chalking resistance. It withstands harsh weather conditions, industrial pollutants, and salt spray without degrading. The standard formulation requires a minimum of 70% fluoropolymer resin to guarantee long-term performance. For permanent exterior facades, a high-quality PVDF coating is mandatory to prevent the building from looking faded after a decade.
Polyester finishes provide a highly flexible coating option. They offer excellent color vibrancy and a smooth finish right out of the factory. However, the chemical bonds in polyester resins break down rapidly under ultraviolet light. They are prone to rapid UV degradation when exposed to direct sunlight. Therefore, PE finishes are suitable only for interior applications, corporate identity programs, or short-term exterior signage. Using a PE finish on a permanent building facade will result in severe fading, chalking, and gloss loss within three to five years.
Fluoroethylene Alkyl Vinyl Ether (FEVE) resins offer an alternative to PVDF. FEVE coatings allow for higher gloss levels and brighter, more vibrant colors without sacrificing weatherability. Unlike PVDF, which requires high-temperature baking, FEVE resins can cure at room temperature, making them suitable for field touch-ups and repairs. Manufacturers also offer specialty functional coatings applied over the base color. Anti-graffiti treatments create a low-surface-energy barrier that prevents spray paint adhesion. Self-cleaning coatings utilize titanium dioxide to break down organic dirt when exposed to sunlight. Anti-bacterial treatments are available for cleanroom or hospital interior applications.
Evaluating panels against international fire standards is a mandatory step for any commercial project. Procurement teams must verify compliance with strict testing protocols. You cannot rely on marketing brochures; you need the actual lab reports.
NFPA 285: Evaluates the fire propagation characteristics of exterior non-load-bearing wall assemblies. This tests the entire wall system, including the insulation and framing, not just the panel.
EN 13501-1: Classifies the reaction to fire of construction products in Europe. Look for classifications like B-s1, d0 for standard FR, or A2-s1, d0 for non-combustible cores.
ASTM E84: Tests the surface burning characteristics of materials, measuring flame spread and smoke developed indices.
Engineers must calculate how the specific gravity of the core and the gauge of the aluminum impact structural sub-framing requirements. A thicker aluminum skin increases the panel's stiffness, allowing for wider spacing of the support extrusions. This reduces the overall weight of the framing system and cuts down on installation labor. Accurately matching the panel's mechanical properties to the local wind load requirements prevents panel deflection and fastener pull-out during severe weather events. You must check the deflection limits (typically L/60 or L/90) specified by the structural engineer.
Sustainability assessments focus on the entire lifecycle of the cladding material. Assessing panels crafted from recycled aluminum improves the project's environmental profile. At the end of the building's life, physical separation processes can detach the aluminum skins from the core material. Facilities use mechanical shredders and density separators to isolate the metals. The aluminum can be melted down and reused indefinitely. Thermoplastic cores can also be ground down and recycled into new industrial products like composite lumber or drainage pipes.
Adhesive failure causes the aluminum skins to peel away from the core. This delamination stems from poor manufacturing controls, expired adhesive films, or extreme moisture ingress at unprotected panel edges. To mitigate this risk, strictly specify panels with verified peel-strength testing exceeding 115 N-mm/mm. Ensure the fabrication process includes proper edge sealing techniques. When routing and folding the panels into cassettes, fabricators should apply a continuous bead of compatible silicone sealant in the corners to prevent water from attacking the macromolecular adhesive film over time.
Aluminum and the core material possess differing thermal expansion coefficients. As temperatures fluctuate between summer heat and winter cold, the panel expands and contracts. If the installation system rigidly locks the panel in place with fixed screws, this movement causes panel bowing, surface distortion, or fastener shear. Engineering considerations must include sliding clips, staggered fixed points, or slotted extrusions. These systems allow the panel to move freely within the framing grid, absorbing thermal stresses without transferring them to the facade surface.
Galvanic corrosion occurs when dissimilar metals come into contact in the presence of moisture. If a zinc-plated steel fastener directly contacts the raw aluminum edge of a cut panel, the aluminum will rapidly corrode, turning into white powder. Mitigation strategies require specifying compatible fastening systems. Always use stainless steel (300 series) or aluminum extrusions and fasteners. Utilize isolation tape, neoprene washers, or non-conductive shims to separate the cladding from any structural carbon steel components on the building frame.
The composition of an aluminum composite panel directly determines its structural strength, fire performance, weather resistance, and long-term durability. By understanding the role of aluminum alloys, core materials, protective coatings, and manufacturing quality, you can make more informed material selections that improve project safety, regulatory compliance, and lifecycle value.
About Feiteng
Feiteng is a professional manufacturer of aluminum composite panels for architectural facades, signage, interior decoration, and commercial construction. Equipped with advanced production lines, certified quality management systems, and comprehensive OEM/ODM capabilities, Feiteng delivers high-performance ACP solutions featuring reliable fire-rated cores, premium coating systems, and consistent manufacturing quality for projects worldwide.
Select ACP panels with certified core materials that comply with local fire safety regulations.
Choose suitable aluminum alloys and coating systems based on environmental conditions and project requirements.
Verify technical data sheets, fire test reports, and manufacturing specifications before procurement.
Work with experienced manufacturers that provide consistent quality control and technical support throughout your project.
Before selecting aluminum composite panels, evaluate core composition, aluminum alloy grade, coating technology, manufacturing quality, fire certifications, and supplier expertise to ensure long-lasting performance and dependable project results.
A: There is no material difference. ACM stands for Aluminum Composite Material, referring to the raw product in sheet or coil form. ACP stands for Aluminum Composite Panel, referring to the cut, routed, and fabricated units used in construction. The industry uses both terms interchangeably on job sites.
A: The core consists of either a combustible low-density polyethylene (PE) thermoplastic or a fire-retardant (FR) mixture. FR cores blend thermoplastic binders with non-combustible mineral fillers like aluminum trihydroxide to suppress smoke and resist ignition.
A: Not all panels are fireproof. PE core panels are highly combustible. FR core panels resist fire and delay flame spread. A2 grade and pure aluminum honeycomb cores are considered nearly non-combustible and meet strict high-rise fire codes.
A: The difference lies entirely in the core composition. PE panels use a 100% plastic core that melts and burns easily. FR panels blend plastic binders with heavy mineral fillers to suppress smoke, resist ignition, and release water vapor when heated.
A: The aluminum skin thickness typically ranges from 0.12mm for lightweight signage up to 0.50mm for heavy-duty architectural facades. Thicker skins provide better wind load resistance, allow for sharp routing, and prevent surface waviness.
A: Yes. Specialized recycling facilities can separate the aluminum skins from the core material using mechanical shredders. The aluminum is melted down for reuse, and the thermoplastic core can be repurposed into other industrial plastic products.
A: PVDF (Polyvinylidene Fluoride) is the best coating for exterior applications. It provides superior resistance to UV radiation, chalking, and chemical weathering, ensuring color retention and gloss stability for decades on permanent facades.
